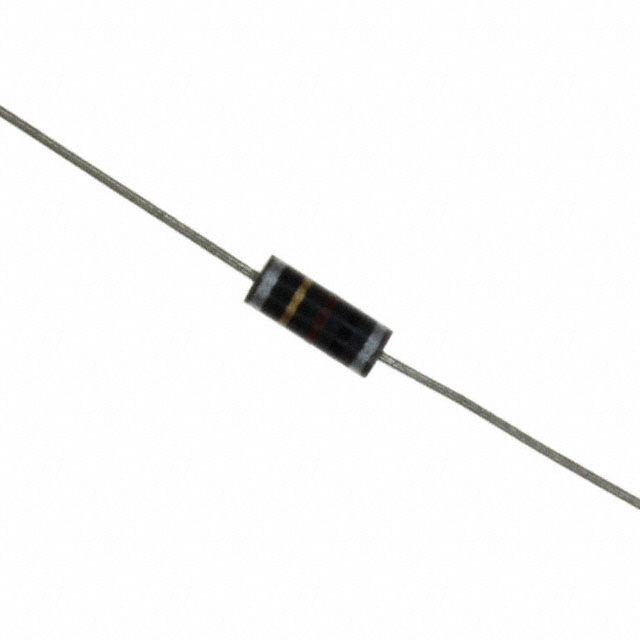

9230 Series

Catalog

FIXED IND 680UH 42MA 60 OHM TH

Part	Current Rating (Amps)	Shielding	Frequency - Self Resonant	Inductance	Tolerance	Material - Core	Q @ Freq	Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR)	Package / Case	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. 9230-88	0.042 A	Unshielded	4.2 MHz	680 µH	10 %	Ferrite	30 790 kHz	Molded	Through Hole	-55 C	125 °C	60 Ohm	Axial	790 kHz
Bourns Inc. 9230-86	48 mA	Unshielded	5 MHz	560 µH	10 %	Ferrite	30 790 kHz	Molded	Through Hole	-55 C	125 °C		Axial	790 kHz	46 Ohm
Bourns Inc. 9230-28	0.55 A	Unshielded	115 MHz	2.2 µH	10 %	Ferrite		Molded	Through Hole	-55 C	125 °C		Axial	7.9 MHz	400 mOhm	7.9 MHz	30
Bourns Inc. 9230-50	195 mA	Unshielded	32 MHz	18 µH	10 %	Ferrite	2.5 MHz 50	Molded	Through Hole	-55 C	125 °C	3.1 Ohm	Axial	2.5 MHz
Bourns Inc. 9230-76	73 mA	Unshielded	9 MHz	220 µH	10 %	Ferrite	30 790 kHz	Molded	Through Hole	-55 C	125 °C		Axial	790 kHz	21 Ohm
Bourns Inc. 9230-82-RC	0.055 A	Unshielded	6.5 MHz	390 µH	10 %	Ferrite	30 790 kHz	Molded	Through Hole	-55 C	125 °C		Axial	790 kHz	35 Ohm
Bourns Inc. 9230-02-RC	1.01 A	Unshielded	550 MHz	180 nH	10 %	Phenolic	25 MHz 35	Molded	Through Hole	-55 C	105 ░C		Axial	25 MHz	120 mOhm
Bourns Inc. 9230-80	62 mA	Unshielded	7 MHz	330 µH	10 %	Ferrite	30 790 kHz	Molded	Through Hole	-55 C	125 °C		Axial	790 kHz	28 Ohm
Bourns Inc. 9230-40-RC	0.245 A	Unshielded	60 MHz	6.8 µH	10 %	Ferrite	7.9 MHz 50	Molded	Through Hole	-55 C	125 °C		Axial	7.9 MHz	2 Ohm
Bourns Inc. 9230-12	590 mA	Unshielded	340 MHz	470 nH	10 %	Phenolic	30	Molded	Through Hole	-55 C	105 ░C		Axial	25 MHz	350 mOhm
