2029056 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

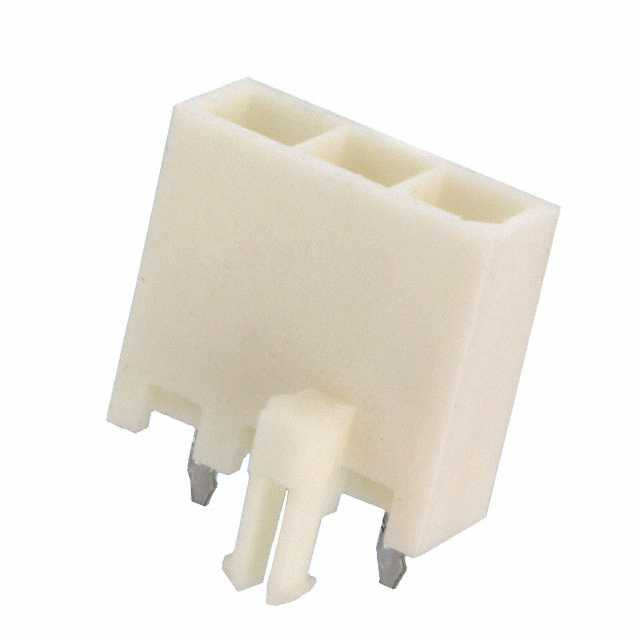

3P VAL-U-LOK SR HDR SN V0 W/DH
| Part | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Number of Rows | Pitch - Mating | Pitch - Mating | Contact Material | Connector Type | Material Flammability Rating | Termination | Current Rating (Amps) | Applications | Style | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Fastening Type | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Positions Loaded | Insulation Material | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | 2.03 µm | 80 µin | 600 VAC | 2.03 µm | 80 µin | Male Pin | 1 | 4.2 mm | 0.165 in | Brass Alloy | Header | UL94 V-0 | Solder | 9 A | General Purpose Industrial Lighting | Board to Cable/Wire | Tin | 3.5 mm | 0.138 in | 12.8 mm | 0.504 in | Locking Ramp | Natural | -40 °C | 105 ░C | Through Hole | All | Nylon Polyamide (PA) | Square |
