RFAAAPC Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

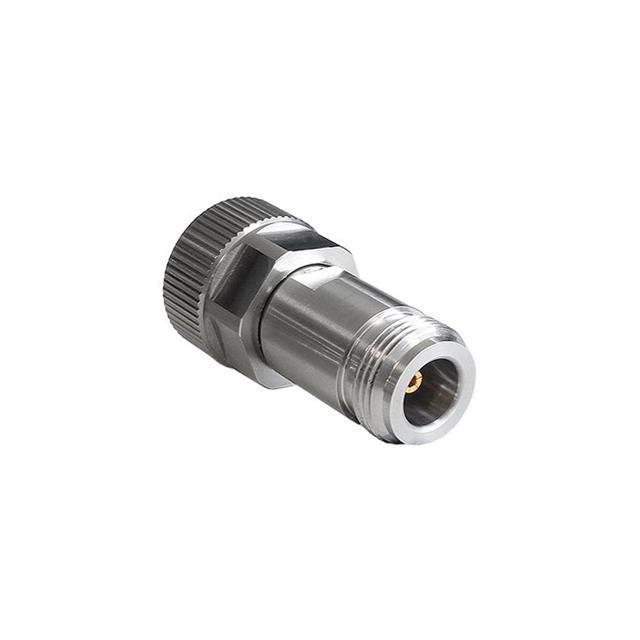

RF / COAXIAL ADAPTER, APC7, JACK, N, JACK, STRAIGHT ADAPTER, 50 OHM
| Part | Dielectric Material | Body Material | Center Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Conversion Type | Adapter Type | Center Gender | Impedance | Adapter Series | Convert From (Adapter End) | Mounting Type | Convert To (Adapter End) | Style | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | Beryllium Copper | 85 °C | -40 C | 500 | Between Series | Jack to Jack | Female to Female | 50 Ohms | N to APC-7mm | Female Socket N Jack | Free Hanging (In-Line) | APC-7mm Jack Female Socket | Straight | 18 GHz |
 BULGIN LIMITED | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | Beryllium Copper | 85 °C | -40 C | 500 | Between Series | Plug to Jack | 50 Ohms | N to APC-7mm | N Plug Male Pin | Free Hanging (In-Line) | APC-7mm Jack Female Socket | Straight | 18 GHz |
