THS3121 Series

Single, Low Noise, High Output Drive, 475mA Current-Feedback Amplifier

Catalog

Single, Low Noise, High Output Drive, 475mA Current-Feedback Amplifier

Part	Supplier Device Package	Current - Output / Channel	Current - Input Bias	Voltage - Supply Span (Min) [Min]	Number of Circuits	Package / Case	Package / Case [y]	Package / Case [x]	Slew Rate	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply	Voltage - Input Offset	Voltage - Supply Span (Max) [Max]	-3db Bandwidth	Amplifier Type	Contents	Utilized IC / Part	Output Type	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Current - Supply (Main IC)	Channels per IC	Package / Case [custom]
Texas Instruments THS3121CD	8-SOIC	490 mA	3 µA	10 V	1	8-SOIC	3.9 mm	0.154 in	1700 V/µs	Surface Mount	70 °C	0 °C	7 mA	2 mV	30 V	130 MHz	Current Feedback
Texas Instruments THS3121ID	8-SOIC	490 mA	3 µA	10 V	1	8-SOIC	3.9 mm	0.154 in	1700 V/µs	Surface Mount	85 °C	-40 °C	7 mA	2 mV	30 V	130 MHz	Current Feedback

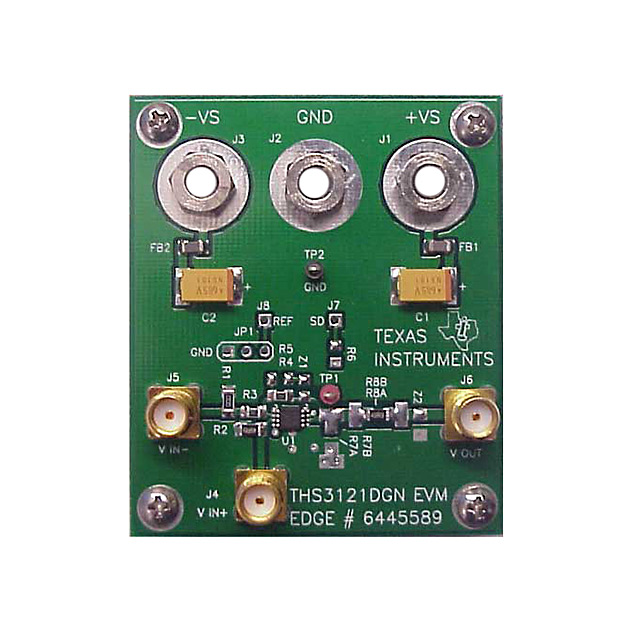

Texas Instruments THS3121EVM		490 mA							1700 V/µs							130 MHz	Current Feedback	Board(s)	THS3121	Single-Ended	-5 V 10 V	15 V 30 V	7 mA	1 - Single
Texas Instruments THS3121IDGNG4	8-HVSSOP	490 mA	3 µA	10 V	1	8-MSOP 8-TSSOP Exposed Pad			1700 V/µs	Surface Mount	85 °C	-40 °C	7 mA	2 mV	30 V	130 MHz	Current Feedback								0.118 in 3 mm

Catalog

Single, Low Noise, High Output Drive, 475mA Current-Feedback Amplifier

Key Features

• Low Noise:1 pA/√HzNoninverting Current Noise10 pA/√HzInverting Current Noise2.5 nV/√HzVoltage NoiseHigh Output Current Drive: 475 mAHigh Slew Rate:1700 V/µs (RL= 50, VO= 8 VPP)Wide Bandwidth: 120 MHz (G = 2, RL= 50)Wide Supply Range: ±5 V to ±15 VPower-Down Feature: (THS3120 Only)APPLICATIONSVideo DistributionPower FET DriverPin DriverCapacitive Load DriverAll trademarks are the property of their respective owners.Low Noise:1 pA/√HzNoninverting Current Noise10 pA/√HzInverting Current Noise2.5 nV/√HzVoltage NoiseHigh Output Current Drive: 475 mAHigh Slew Rate:1700 V/µs (RL= 50, VO= 8 VPP)Wide Bandwidth: 120 MHz (G = 2, RL= 50)Wide Supply Range: ±5 V to ±15 VPower-Down Feature: (THS3120 Only)APPLICATIONSVideo DistributionPower FET DriverPin DriverCapacitive Load DriverAll trademarks are the property of their respective owners.

Description

The THS3120 and THS3121 are low-noise, high-voltage, high output current drive, current-feedback amplifiers designed to operate over a wide supply range of ±5 V to ±15 V for today's high-performance applications. The THS3120 offers a power saving mode by providing a power-down pin for reducing the 7-mA quiescent current of the device, when the device is not active. These amplifiers provide well-regulated ac performance characteristics. Most notably, the 0.1-dB flat bandwidth is exceedingly high, reaching beyond 90 MHz. The unity-gain bandwidth of 130 MHz allows for good distortion characteristics at 10 MHz. Coupled with high 1700-V/µs slew rate, the THS3120 and THS3121 amplifiers allow for high output voltage swings at high frequencies. The THS3120 and THS3121 are offered in an SOIC-8 (D) package and an MSOP-8 (DGN) PowerPAD package. The THS3120 and THS3121 are low-noise, high-voltage, high output current drive, current-feedback amplifiers designed to operate over a wide supply range of ±5 V to ±15 V for today's high-performance applications. The THS3120 offers a power saving mode by providing a power-down pin for reducing the 7-mA quiescent current of the device, when the device is not active. These amplifiers provide well-regulated ac performance characteristics. Most notably, the 0.1-dB flat bandwidth is exceedingly high, reaching beyond 90 MHz. The unity-gain bandwidth of 130 MHz allows for good distortion characteristics at 10 MHz. Coupled with high 1700-V/µs slew rate, the THS3120 and THS3121 amplifiers allow for high output voltage swings at high frequencies. The THS3120 and THS3121 are offered in an SOIC-8 (D) package and an MSOP-8 (DGN) PowerPAD package.
