DSP563 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

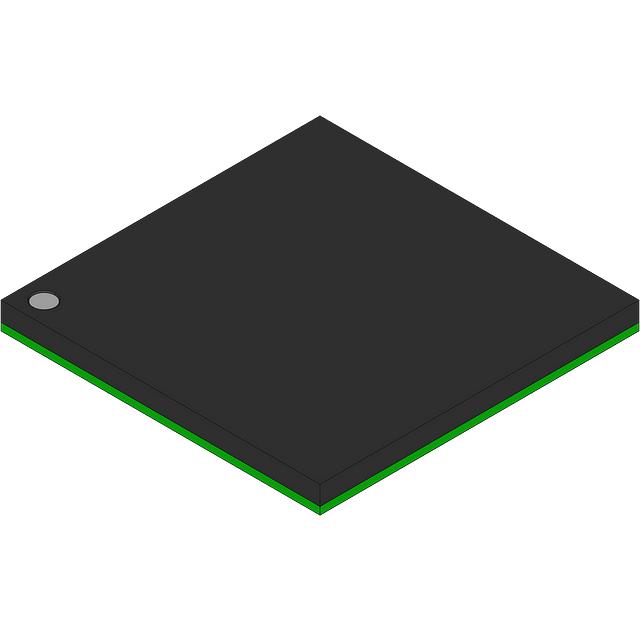

IC DSP 24BIT 150MHZ 196-BGA

Part	Package / Case	Type	Voltage - I/O	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	On-Chip RAM	Non-Volatile Memory	Non-Volatile Memory	Supplier Device Package	Voltage - Core	Interface	Clock Rate	Voltage - Core [custom]
Freescale Semiconductor - NXP DSP56311VF150R2	196-LBGA	Fixed Point	3.3 V	Surface Mount	100 °C	-40 C	384 kB	ROM	576 B	196-LBGA (15x15)	1.8 V	Host Interface SCI SSI
Freescale Semiconductor - NXP DSP56301VF80	252-BGA	Fixed Point	3.3 V	Surface Mount	100 °C	-40 C	24 kB		9 kB	252-MAPBGA (21x21)	3.3 V	Host Interface SCI SSI	80 MHz
Freescale Semiconductor - NXP DSP56303VL100B1	196-LBGA	Fixed Point	3.3 V	Surface Mount	100 °C	-40 C	24 kB	ROM	576 B	196-LBGA (15x15)	3.3 V	Host Interface SCI SSI	100 MHz
Freescale Semiconductor - NXP DSP56303AG100R2	144-LQFP	Fixed Point	3.3 V	Surface Mount	100 °C	-40 C	24 kB	ROM	576 B	144-LQFP (20x20)	3.3 V	Host Interface SCI SSI	100 MHz
Freescale Semiconductor - NXP DSP56303VF100B1	196-LBGA	Fixed Point	3.3 V	Surface Mount	100 °C	-40 C	24 kB	ROM	576 B	196-LBGA (15x15)	3.3 V	Host Interface SCI SSI	100 MHz
Freescale Semiconductor - NXP DSP56321VL200R2	196-BGA	Fixed Point	3.3 V	Surface Mount	100 °C	-40 C	576 kB	ROM	576 B	196-MAPBGA (15x15)		Host Interface SCI SSI	200 MHz	1.6 V
Freescale Semiconductor - NXP DSP56311VF150	196-LBGA	Fixed Point	3.3 V	Surface Mount	100 °C	-40 C	384 kB	ROM	576 B	196-LBGA (15x15)	1.8 V	Host Interface SCI SSI
Freescale Semiconductor - NXP DSP56303VF100	196-LBGA	Fixed Point	3.3 V	Surface Mount	100 °C	-40 C	24 kB	ROM	576 B	196-LBGA (15x15)	3.3 V	Host Interface SCI SSI	100 MHz
Freescale Semiconductor - NXP DSP56303AG100B1	144-LQFP	Fixed Point	3.3 V	Surface Mount	100 °C	-40 C	24 kB	ROM	576 B	144-LQFP (20x20)	3.3 V	Host Interface SCI SSI	100 MHz
Freescale Semiconductor - NXP DSP56301AG80	208-LQFP	Fixed Point	3.3 V	Surface Mount	100 °C	-40 C	24 kB		9 kB	208-TQFP (28x28)	3.3 V	Host Interface SCI SSI	80 MHz
