1274 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

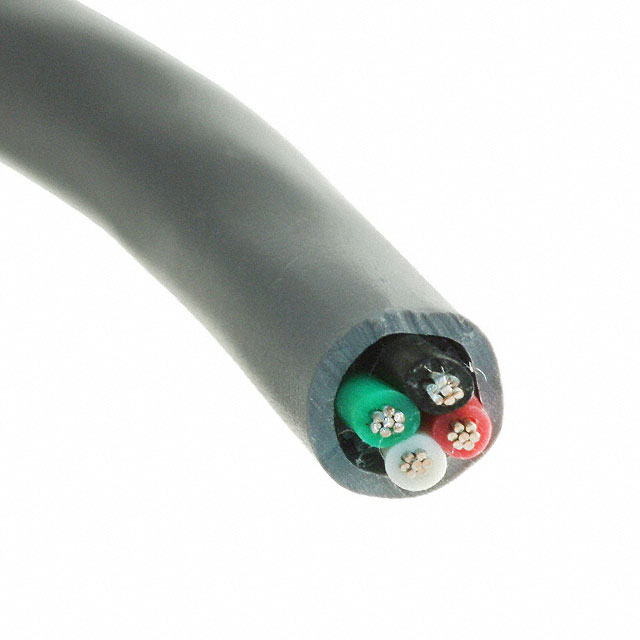

CABLE 4COND 14AWG SLATE
| Part | Cable Type | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Voltage | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Conductor Insulation | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Multi-Conductor | Copper Tinned | 80 °C | -20 ░C | Slate | 1.194 mm | 0.047 in | 4 | 600 V | Poly-Vinyl Chloride (PVC) | 12.78 mm | 0.503 " | 152.4 m | 500 ft | 19 | 0.0147 in | Communication Control | Poly-Vinyl Chloride (PVC) | 14.5 AWG |
ALPHA WIRE | Multi-Conductor | Copper Tinned | 80 °C | -20 ░C | Slate | 1.194 mm | 0.047 in | 4 | 600 V | Poly-Vinyl Chloride (PVC) | 12.78 mm | 0.503 " | 304.8 m | 1000 ft | 19 | 0.0147 in | Communication Control | Poly-Vinyl Chloride (PVC) | 14.5 AWG |
