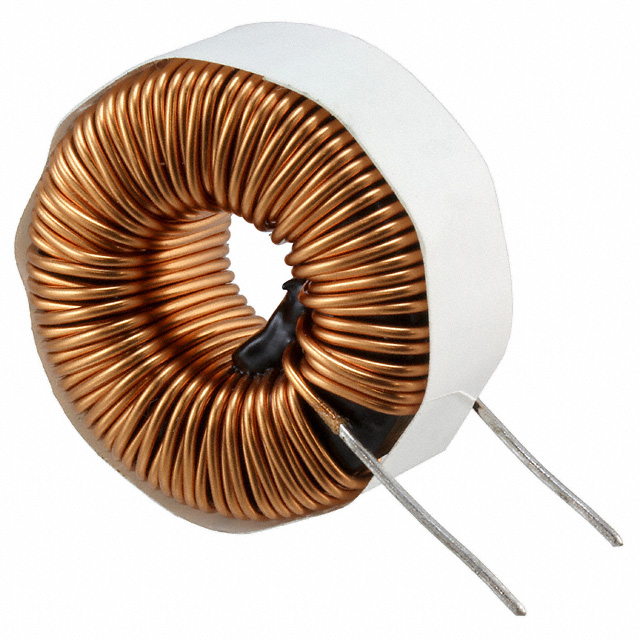

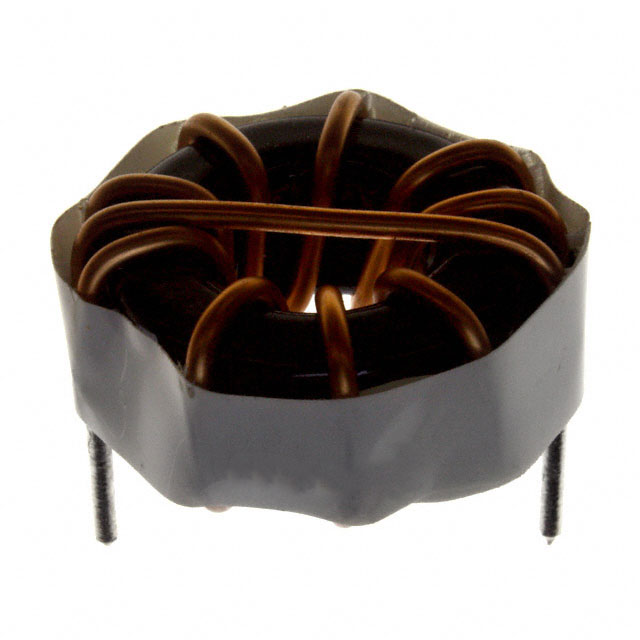

2300LL Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 39UH 12.2A 11 MOHM TH
| Part | Material - Core | Inductance | Tolerance | Mounting Type | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [diameter] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [diameter] | Type | DC Resistance (DCR) [Max] | Package / Case | Inductance Frequency - Test | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Sendust | 39 µH | 15 % | Through Hole | Shielded | -55 C | 125 °C | 32.51 mm | 16.51 mm | 0.65 W | 1.28 Dia | Toroidal | 11 mOhm | Radial Vertical (Open) | 1 kHz | 12.2 A | |||
 Bourns Inc. | Sendust | 12 µH | 15 % | Through Hole | Shielded | -55 C | 125 °C | 32.51 mm | 1.28 in | Toroidal | 4 mOhm | Radial Horizontal (Open) | 1 kHz | 19.6 A | 16.51 mm | 16.51 mm | |||
 Bourns Inc. | Sendust | 470 µH | 15 % | Through Hole | Shielded | -55 C | 125 °C | 32.51 mm | 16.51 mm | 0.65 W | 1.28 Dia | Toroidal | Radial Vertical (Open) | 1 kHz | 4.2 A | 94 mOhm | |||
 Bourns Inc. | Sendust | 10 µH | 15 % | Through Hole | Shielded | -55 C | 125 °C | 32.51 mm | 1.28 in | Toroidal | 4 mOhm | Radial Horizontal (Open) | 1 kHz | 20.8 A | 16.51 mm | 16.51 mm | |||
Bourns Inc. | Sendust | 1 mH | 15 % | Through Hole | Shielded | -55 C | 125 °C | 32.51 mm | 1.28 in | Toroidal | 137 mOhm | Radial Horizontal (Open) | 1 kHz | 3.5 A | 16.51 mm | 16.51 mm | |||
 Bourns Inc. | Sendust | 100 µH | 15 % | Through Hole | Shielded | -55 C | 125 °C | 32.51 mm | 1.28 in | Toroidal | Radial Horizontal (Open) | 1 kHz | 7.8 A | 16.51 mm | 16.51 mm | 27 mOhm | |||
Bourns Inc. | Sendust | 560 µH | 15 % | Through Hole | Shielded | -55 C | 125 °C | 32.51 mm | 1.28 in | Toroidal | Radial Horizontal (Open) | 1 kHz | 4 A | 16.51 mm | 16.51 mm | 103 mOhm | |||
Bourns Inc. | Sendust | 820 µH | 15 % | Through Hole | Shielded | -55 C | 125 °C | 32.51 mm | 16.51 mm | 0.65 W | 1.28 Dia | Toroidal | 123 mOhm | Radial Vertical (Open) | 1 kHz | 3.6 A | |||
Bourns Inc. | Sendust | 3.9 µH | 20 % | Through Hole | Shielded | -55 C | 125 °C | 32.51 mm | 16.51 mm | 0.65 W | 1.28 Dia | Toroidal | 2 mOhm | Radial Vertical (Open) | 1 kHz | ||||
Bourns Inc. | Sendust | 27 µH | 15 % | Through Hole | Shielded | -55 C | 125 °C | 32.51 mm | 1.28 in | Toroidal | 6 mOhm | Radial Horizontal (Open) | 1 kHz | 17 A | 16.51 mm | 16.51 mm |
