622-M09 Series
Manufacturer: EDAC Inc.
Beta
⌘K
EDAC RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
| Part | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Type | Material Flammability Rating | Features | Number of Rows [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Termination | Backset Spacing | Backset Spacing | Connector Type | Contact Finish | Connector Style | Current Rating (Amps) | Number of Positions | Flange Feature | Mounting Type | Contact Finish Thickness | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

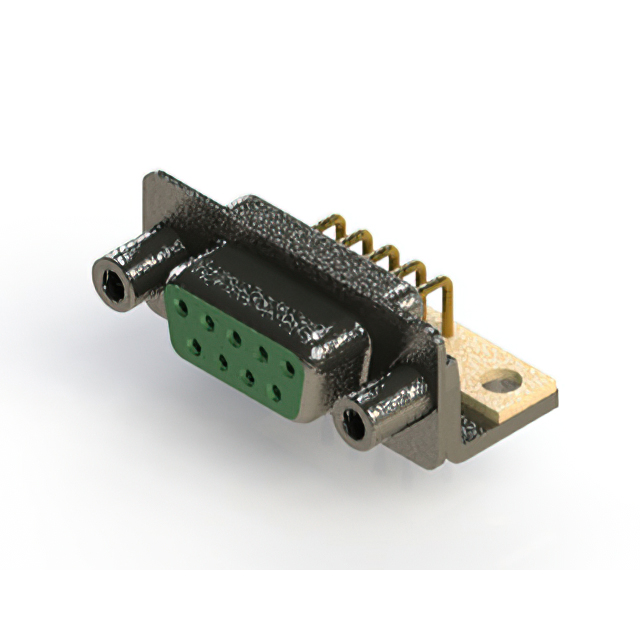

 EDAC Inc. | Copper Alloy | Green | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Signal | UL94 V-0 | Mounting Brackets Shielded | 2 | 1 | DE E | Solder | 7.2 mm | 0.283 in | Receptacle Female Sockets | Gold | D-Sub | 5 A | 9 | 4-40 | Board Edge Right Angle Through Hole | Flash | ||||
 EDAC Inc. | Copper Alloy | White | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Signal | UL94 V-0 | Mounting Brackets Shielded | 2 | 1 | DE E | Solder | 7.2 mm | 0.283 in | Receptacle Female Sockets | Gold | D-Sub | 5 A | 9 | 4-40 | Board Edge Right Angle Through Hole | Flash | Nickel Plated Steel | |||
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Signal | UL94 V-0 | Mounting Brackets Shielded | 2 | 1 | DE E | Solder | 7.2 mm | 0.283 in | Receptacle Female Sockets | Gold | D-Sub | 5 A | 9 | 4-40 | Board Edge Right Angle Through Hole | Flash | Nickel Plated Steel | |||
 EDAC Inc. | Copper Alloy | White | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Signal | UL94 V-0 | Shielded | 2 | 1 | DE E | Solder | 7.2 mm | 0.283 in | Receptacle Female Sockets | Gold | D-Sub | 5 A | 9 | Housing/Shell (Unthreaded) | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | |||
 EDAC Inc. | Copper Alloy | White | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Signal | UL94 V-0 | Shielded | 2 | 1 | DE E | Solder | 7.2 mm | 0.283 in | Receptacle Female Sockets | Gold | D-Sub | 5 A | 9 | Housing/Shell | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | 4-40 | ||
 EDAC Inc. | Copper Alloy | Blue | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Signal | UL94 V-0 | Shielded | 2 | 1 | DE E | Solder | 7.2 mm | 0.283 in | Receptacle Female Sockets | Gold | D-Sub | 5 A | 9 | Housing/Shell (Unthreaded) | Board Edge Right Angle Through Hole | Nickel Plated Steel | 0.38 µm | 15 µin | ||
 EDAC Inc. | Copper Alloy | Green | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Signal | UL94 V-0 | Board Lock Mounting Brackets Shielded | 2 | 1 | DE E | Solder | 7.2 mm | 0.283 in | Receptacle Female Sockets | Gold | D-Sub | 5 A | 9 | Housing/Shell | Board Edge Right Angle Through Hole | Flash | 4-40 | |||
 EDAC Inc. | Copper Alloy | White | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Signal | UL94 V-0 | Shielded | 2 | 1 | DE E | Solder | 7.2 mm | 0.283 in | Receptacle Female Sockets | Gold | D-Sub | 5 A | 9 | Housing/Shell (Unthreaded) | Board Edge Right Angle Through Hole | Nickel Plated Steel | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | Copper Alloy | White | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Signal | UL94 V-0 | Mounting Brackets Shielded | 2 | 1 | DE E | Solder | 7.2 mm | 0.283 in | Receptacle Female Sockets | Gold | D-Sub | 5 A | 9 | Housing/Shell | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | 4-40 | ||
 EDAC Inc. | Copper Alloy | Blue | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Signal | UL94 V-0 | Board Lock Mounting Brackets Shielded | 2 | 1 | DE E | Solder | 7.2 mm | 0.283 in | Receptacle Female Sockets | Gold | D-Sub | 5 A | 9 | Housing/Shell | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | 4-40 |
