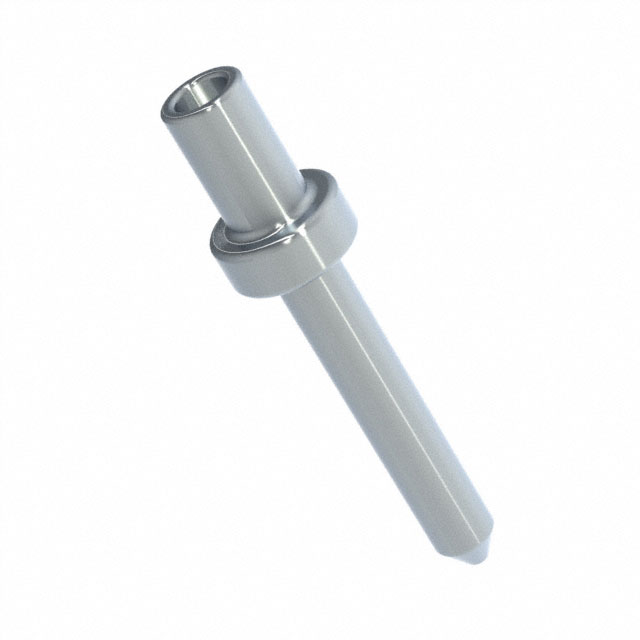

3114-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC .025DIA TINLEAD
| Part | Flange Diameter | Flange Diameter | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Termination | Terminal Style | Length - Below Flange [x] | Length - Below Flange [x] | Insulation | Mounting Type | Length - Above Flange | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Board Thickness | Board Thickness | Contact Finish | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.05 in | 1.27 mm | 0.89 mm | 0.035 in | 5.61 mm | 0.221 in | Swage | Single End | 0.051 " | 1.3 mm | Non-Insulated | Through Hole | 3.81 mm | 0.15 in | 0.64 mm | 0.025 in | 0.79 mm | 0.031 in | Tin-Lead | Brass Alloy | 200 Áin | 5.08 Ám | PC Pin |
 Mill-Max Manufacturing Corp. | 0.05 in | 1.27 mm | 0.89 mm | 0.035 in | 5.61 mm | 0.221 in | Swage | Single End | 0.051 " | 1.3 mm | Non-Insulated | Through Hole | 3.81 mm | 0.15 in | 0.64 mm | 0.025 in | 0.79 mm | 0.031 in | Tin | Brass Alloy | 200 Áin | 5.08 Ám | PC Pin |
