LM3677 Series

Catalog

3MHZ, 600MA MINIATURE STEP-DOWN DC-DC CONVERTER FOR ULTRA LOW VOLTAGE CIRCUITS

Part	Supplier Device Package	Current - Output	Number of Outputs	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Output Type	Package / Case	Frequency - Switching	Topology	Voltage - Output (Min/Fixed)	Function	Mounting Type	Voltage - Input (Max) [Max]	Output Type	Voltage - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Voltage - Output	Board Type	Regulator Topology	Supplied Contents	Outputs and Type	Outputs and Type	Utilized IC / Part

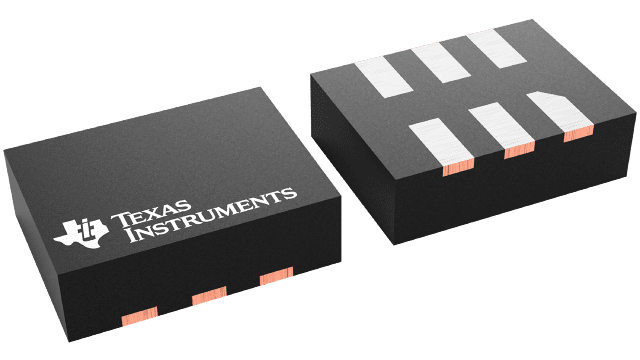

Texas Instruments LM3677LEE-1.2/NOPB	6-USON (2x1.5)	600 mA	1	2.7 V	-30 °C	85 °C	Positive	1.81 mOhm	6-UFDFN	3 MHz	Buck	1.2 V	Step-Down	Surface Mount	5.5 V
Texas Instruments LM3677LEE-1.8/NOPB	6-USON (2x1.5)	600 mA	1	2.7 V	-30 °C	85 °C	Positive	1.81 mOhm	6-UFDFN	3 MHz	Buck	1.8 V	Step-Down	Surface Mount	5.5 V
Texas Instruments LM3677TL-1.8/NOPB	5-DSBGA (1.41x1.08)	600 mA	1	2.7 V	-30 °C	85 °C	Positive	1.81 mOhm		3 MHz	Buck	1.8 V	Step-Down	Surface Mount	5.5 V
Texas Instruments LM3677LEX-1.5/NOPB	6-USON (2x1.5)	600 mA	1	2.7 V	-30 °C	85 °C	Positive	1.81 mOhm	6-UFDFN	3 MHz	Buck	1.5 V	Step-Down	Surface Mount	5.5 V
Texas Instruments LM3677TL-1.2/NOPB	5-DSBGA (1.41x1.08)	600 mA	1	2.7 V	-30 °C	85 °C	Positive	1.81 mOhm		3 MHz	Buck	1.2 V	Step-Down	Surface Mount	5.5 V
Texas Instruments LM3677TLX-ADJ/NOPB	5-DSBGA (1.41x1.08)	600 mA	1	2.7 V	-30 °C	85 °C	Positive			3 MHz	Buck	1.2 V	Step-Down	Surface Mount	5.5 V	Adjustable	3.3 V

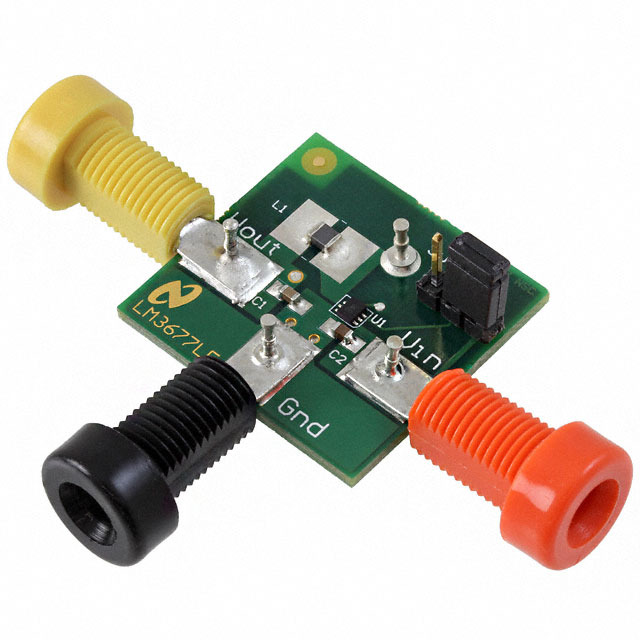

Texas Instruments LM3677LE-1.8EV		600 mA								3 MHz								2.7 V	5.5 V	DC/DC Step Down	1.8 V	Fully Populated	Buck	Board(s)	Non-Isolated	1	LM3677
Texas Instruments LM3677TL-1.8EV		600 mA								3 MHz								2.7 V	5.5 V	DC/DC Step Down	1.8 V	Fully Populated	Buck	Board(s)	Non-Isolated	1	LM3677
Texas Instruments LM3677TL-2.5/NOPB	5-DSBGA (1.41x1.08)	600 mA	1	2.7 V	-30 °C	85 °C	Positive	1.81 mOhm		3 MHz	Buck	2.5 V	Step-Down	Surface Mount	5.5 V
Texas Instruments LM3677TLX-1.2/NOPB	5-DSBGA (1.41x1.08)	600 mA	1	2.7 V	-30 °C	85 °C	Positive	1.81 mOhm		3 MHz	Buck	1.2 V	Step-Down	Surface Mount	5.5 V
