2314928 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

10P,2MM,B-B,REC,SRHZ,2.1,0.1AU,T

Part	Contact Shape	Insulation Color	Contact Finish - Mating	Number of Positions	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Type	Termination	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Mounting Type	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Connector Type	Insulation Material	Material Flammability Rating	Voltage Rating	Number of Rows	Current Rating (Amps)	Insulation Height	Insulation Height

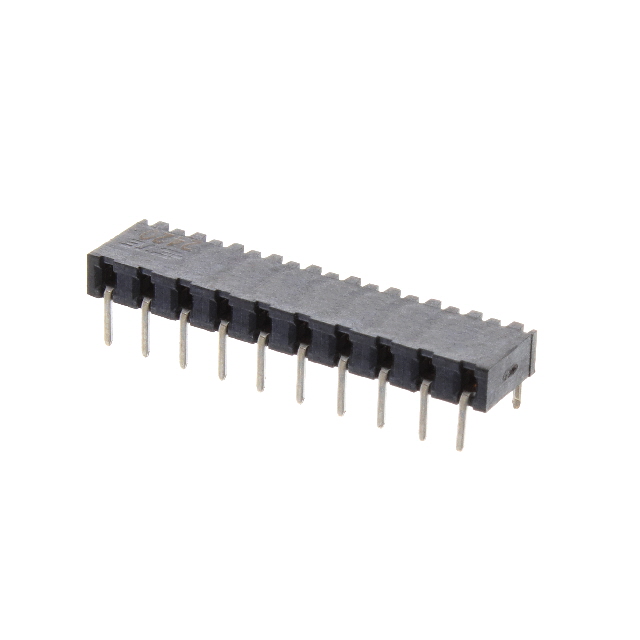

TE Connectivity Raychem Cable Protection 1-2314928-0	Square	Black	Gold	10	0.08 in	2.03 mm	125 °C	-40 °C	All	Female Socket	Solder	Tin	0.079 in	2 mm	3.94 µin	0.1 µm	0.083 in	2.11 mm	Through Hole Right Angle	Push-Pull	3 µm	118.1 µin	Phosphor Bronze	Receptacle	Liquid Crystal Polymer (LCP)	UL94 V-0	125 VDC	1	2 A

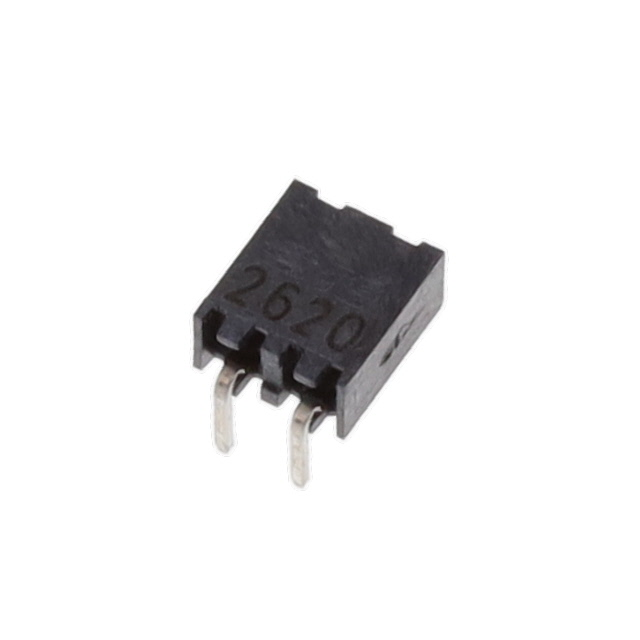

TE Connectivity Raychem Cable Protection 2314928-2	Square	Black	Gold	2	0.08 in	2.03 mm	125 °C	-40 °C	All	Female Socket	Solder	Tin	0.079 in	2 mm	3.94 µin	0.1 µm	0.083 in	2.11 mm	Through Hole Right Angle	Push-Pull	3 µm	118.1 µin	Phosphor Bronze	Receptacle	Liquid Crystal Polymer (LCP)	UL94 V-0	125 VDC	1	2 A
TE Connectivity Raychem Cable Protection 2314928-4	Square	Black	Gold	4			125 °C	-40 °C	All	Female Socket	Solder	Tin	0.079 in	2 mm	3.94 µin	0.1 µm	0.083 in	2.11 mm	Through Hole Right Angle	Push-Pull	0.3 µm	12 µin	Phosphor Bronze	Receptacle	Liquid Crystal Polymer (LCP)	UL94 V-0	125 VDC	1	2 A	2.1 mm	0.083 "

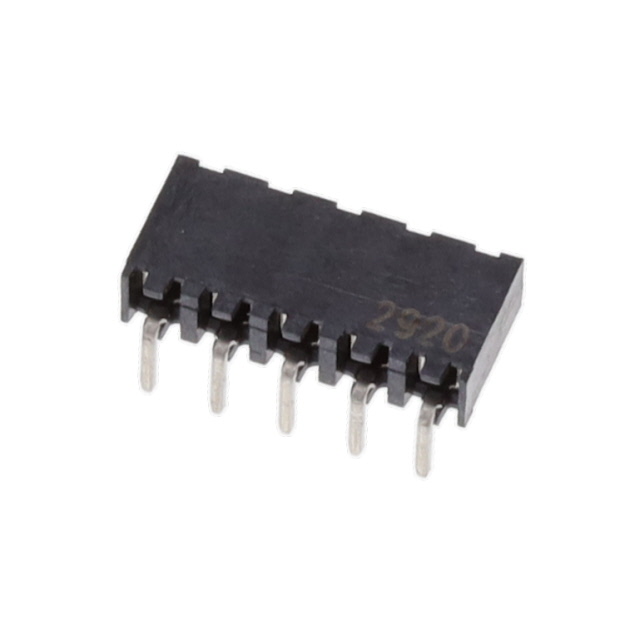

TE Connectivity Raychem Cable Protection 2314928-5	Square	Black	Gold		0.08 in	2.03 mm	125 °C	-40 °C	All	Female Socket	Solder	Tin	0.079 in	2 mm	3.94 µin	0.1 µm	0.083 in	2.11 mm	Through Hole Right Angle	Push-Pull	3 µm	118.1 µin	Phosphor Bronze	Receptacle	Liquid Crystal Polymer (LCP)	UL94 V-0	125 VDC	1	2 A

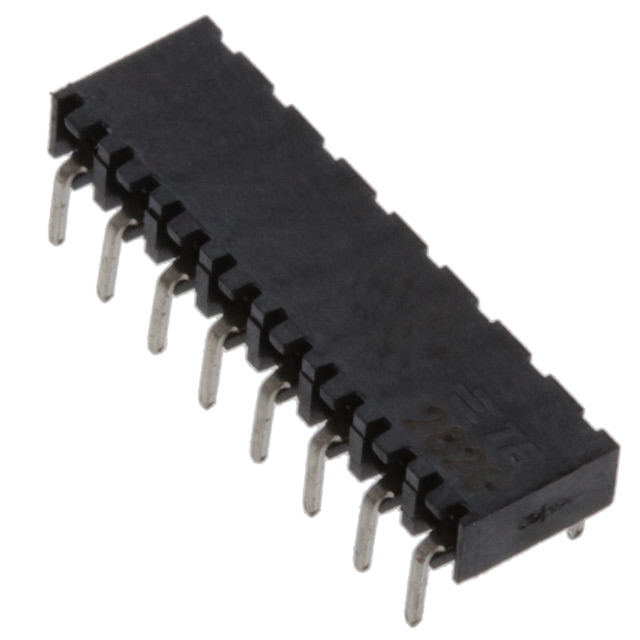

TE Connectivity Raychem Cable Protection 2314928-8	Square	Black	Gold	8	0.08 in	2.03 mm	125 °C	-40 °C	All	Female Socket	Solder	Tin	0.079 in	2 mm	3.94 µin	0.1 µm	0.083 in	2.11 mm	Through Hole Right Angle	Push-Pull	3 µm	118.1 µin	Phosphor Bronze	Receptacle	Liquid Crystal Polymer (LCP)	UL94 V-0	125 VDC	1	2 A

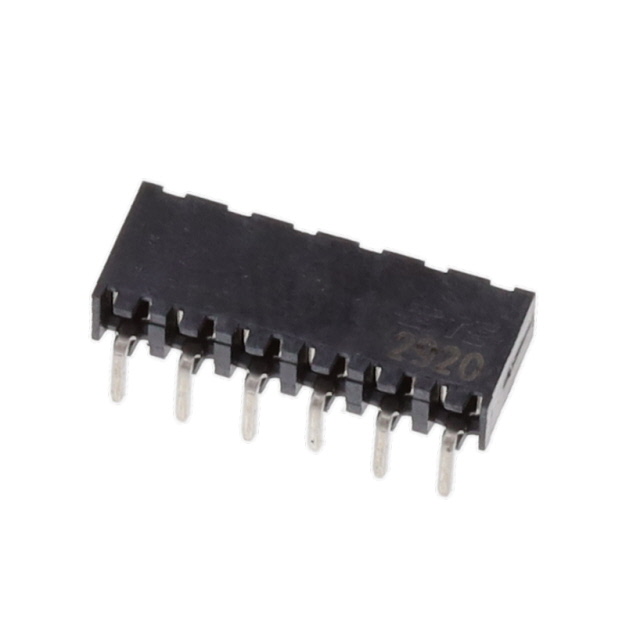

TE Connectivity Raychem Cable Protection 2314928-6	Square	Black	Gold	6	0.08 in	2.03 mm	125 °C	-40 °C	All	Female Socket	Solder	Tin	0.079 in	2 mm	3.94 µin	0.1 µm	0.083 in	2.11 mm	Through Hole Right Angle	Push-Pull	3 µm	118.1 µin	Phosphor Bronze	Receptacle	Liquid Crystal Polymer (LCP)	UL94 V-0	125 VDC	1	2 A

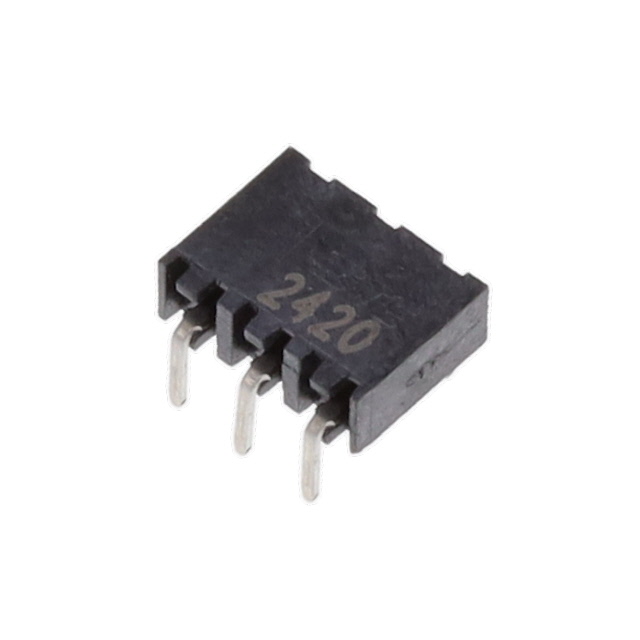

TE Connectivity Raychem Cable Protection 2314928-3	Square	Black	Gold				125 °C	-40 °C	All	Female Socket	Solder	Tin	0.079 in	2 mm	3.94 µin	0.1 µm	0.083 in	2.11 mm	Through Hole Right Angle	Push-Pull	0.3 µm	12 µin	Phosphor Bronze	Receptacle	Liquid Crystal Polymer (LCP)	UL94 V-0	125 VDC	1	2 A	2.1 mm	0.083 "
