AS13985 Series

Catalog

IC REG LINEAR 2.6V 150MA 5-WLCSP

Part	Package / Case	Number of Regulators	Voltage - Output (Min/Fixed) [Min]	Output Configuration	Current - Output	Voltage - Input (Max) [Max]	Voltage Dropout (Max)	Current - Supply (Max) [Max]	Mounting Type	Current - Quiescent (Iq)	PSRR [Min]	PSRR [Max]	Control Features	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Protection Features	Supplier Device Package	Voltage - Output (Min/Fixed)	Utilized IC / Part	Contents	Regulator Type	Channels per IC	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]

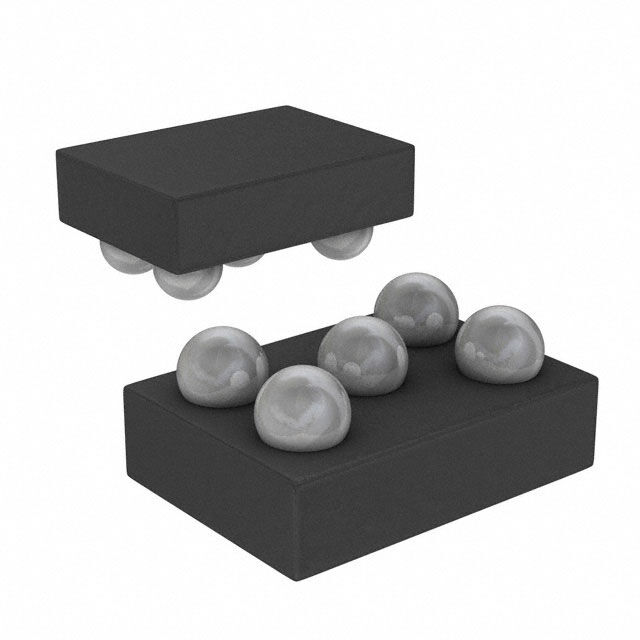

ams-OSRAM USA INC. AS13985F-26-T	5-UFBGA WLCSP	1	2.6 V	Positive	150 mA	5.5 V	0.1 V	250 µA	Surface Mount	130 µA	55 dB	60 dB	Enable	0.97	1.34	5-WLCSP	125 °C	-40 C	Over Current Over Temperature
ams-OSRAM USA INC. AS13985H27-T	SC-74A SOT-753	1		Positive	150 mA	5.5 V	0.1 V	250 µA	Surface Mount	130 µA	55 dB	60 dB	Enable				125 °C	-40 C	Over Current Over Temperature	SOT-23-5	2.7 V
ams-OSRAM USA INC. AS13985F12_EK_ST					150 mA																	AS13985F12	Board(s)	Positive Fixed	1	1.2 V	5.5 V	2.5 V
ams-OSRAM USA INC. AS13985F27-T	5-UFBGA WLCSP	1		Positive	150 mA	5.5 V	0.1 V	250 µA	Surface Mount	130 µA	55 dB	60 dB	Enable	0.97	1.34	5-WLCSP	125 °C	-40 C	Over Current Over Temperature		2.7 V
