CT4S Series

Manufacturer: Autonics

Catalog

COUNTER TIMER 24VAC/24-48VDC

Part	Display Type	Operating Mode	Output Type	Time Format	Type	Display Characters - Height	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Supply	Reset	Number of Characters Per Row	Number of Characters Per Row	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Count Rate	Input Type	Mounting Type	Ingress Protection	Termination Style
Autonics CT4S-2P2	LED - Green Red Characters	Down Up	Relay (2) Solid State	Multiple	Batch Preset Tachometer Timer Totalizer	0.315 in 0.394 in 8 mm 10 mm	48 V	24 V	24 VAC	External Front Panel	4	4	45 mm	45 mm	Multiple	No Voltage Voltage	Panel Mount	IP65 - Dust Tight Water Resistant	Screw Terminal
Autonics CT4S-2P4	LED - Green Red Characters	Down Up	Relay (2) Solid State	Multiple	Batch Preset Tachometer Timer Totalizer	0.315 in 0.394 in 8 mm 10 mm	240 VAC	100 VAC		External Front Panel	4	4	45 mm	45 mm	Multiple	No Voltage Voltage	Panel Mount	IP65 - Dust Tight Water Resistant	Screw Terminal

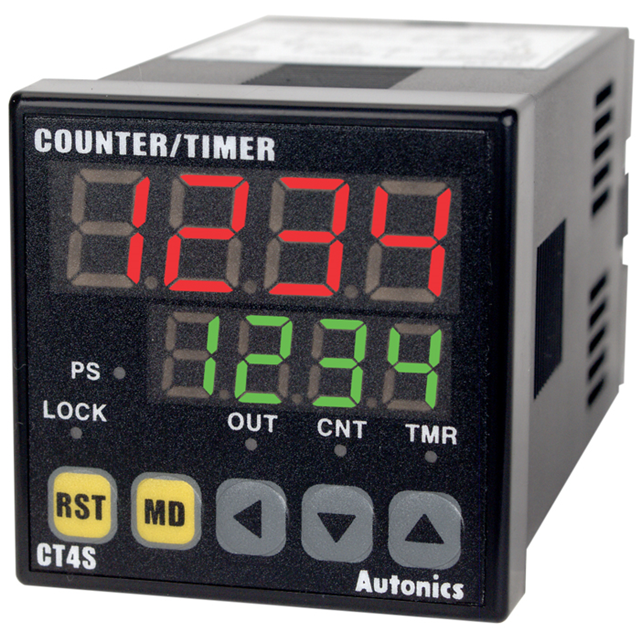

Autonics CT4S-1P4T	LED - Green Red Characters	Down Up	Relay Solid State	Multiple	Batch Preset Tachometer Timer Totalizer	0.315 in 0.394 in 8 mm 10 mm	240 VAC	100 VAC		External Front Panel	4	4	45 mm	45 mm	Multiple	No Voltage Voltage	Panel Mount	IP65 - Dust Tight Water Resistant	Screw Terminal
Autonics CT4S-2P4T	LED - Green Red Characters	Down Up	Relay (2) Solid State	Multiple	Batch Preset Tachometer Timer Totalizer	0.315 in 0.394 in 8 mm 10 mm	240 VAC	100 VAC		External Front Panel	4	4	45 mm	45 mm	Multiple	No Voltage Voltage	Panel Mount	IP65 - Dust Tight Water Resistant	Screw Terminal
Autonics CT4S-1P4	LED - Green Red Characters	Down Up	Relay Solid State	Multiple	Batch Preset Tachometer Timer Totalizer	0.315 in 0.394 in 8 mm 10 mm	240 VAC	100 VAC		External Front Panel	4	4	45 mm	45 mm	Multiple	No Voltage Voltage	Panel Mount	IP65 - Dust Tight Water Resistant	Screw Terminal
Autonics CT4S-1P2	LED - Green Red Characters	Down Up	Relay Solid State	Multiple	Batch Preset Tachometer Timer Totalizer	0.315 in 0.394 in 8 mm 10 mm	48 V	24 V	24 VAC	External Front Panel	4	4	45 mm	45 mm	Multiple	No Voltage Voltage	Panel Mount	IP65 - Dust Tight Water Resistant	Screw Terminal
