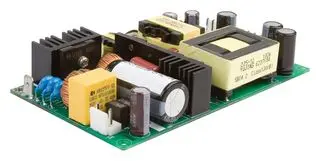

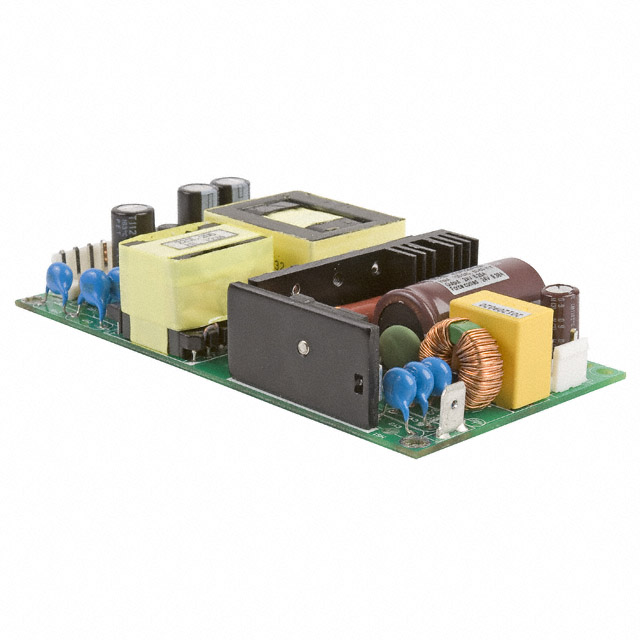

ECP225 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUT, 225W @ 7CFM, 150 W
| Part | Minimum Load Required | Applications | Mounting Type | Voltage - Isolation | Current - Output 1 | Features | Approval Agency | Voltage - Output 1 | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Efficiency | Power (Watts) | Power (Watts) | Standard Number | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | ITE (Commercial) Medical | Chassis Mount | 4000 V | 3.1 A | Adjustable Output PFC Remote On/Off Standby Output Universal Input | CB CE UL | 48 V | Open Frame | 76.2 mm | 127 mm | 127 mm | 3 " | 25.4 mm | 25.4 mm | 70 °C | -20 °C | 1 | 92 % | 150 W | 225 W | 62368-1 | ||||
 XP Power | ITE (Commercial) Medical | Chassis Mount | 4000 V | 4.69 A | Adjustable Output Universal Input | CB CE | 48 V | Open Frame | 127 mm | 63.5 mm | 25.4 mm | 70 °C | -20 °C | 1 | 94 % | 150 W | 225 W | 62368-1 | 2.5 " | 1 in | 5 " |
