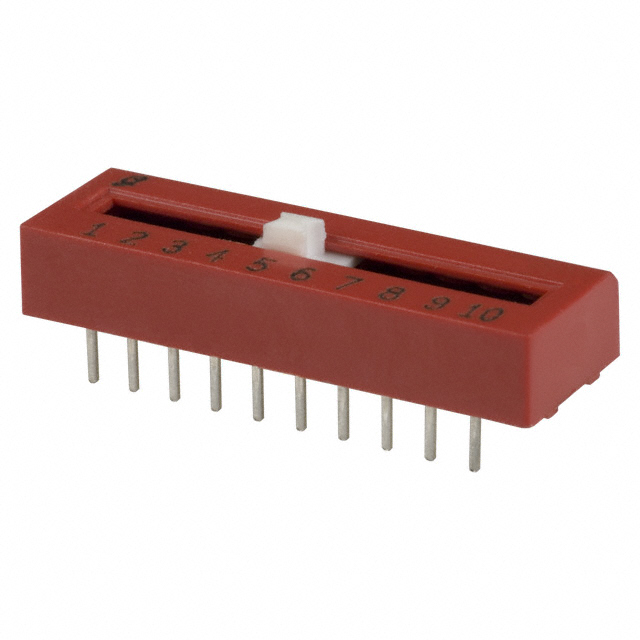

79A10 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH DIP N.O./N.C. SP10T 10 RAISED SLIDE 0.125A 30VDC PC PINS 4000CYCLES 2.54MM THRU-HOLE TUBE
| Part | Body Material | Length | Length | Mechanical Life | Electrical Life | Current Rating (Amps) | Pitch | Pitch | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Level | Height Above Board [z] | Height Above Board [z] | Number of Positions | Actuator Type | Contact Material | Washable | Voltage Rating | Contact Finish | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | Plastic | 29.97 mm | 1.18 in | 4000 Cycles | 2000 Steps | 0.125 Amps | 2.54 mm | 0.1 " | PC Pin | 85 °C | -40 C | Raised | 0.25 in | 6.35 mm | 10 | Slide (Standard) | Copper Alloy | 6 V | Gold | Through Hole |
