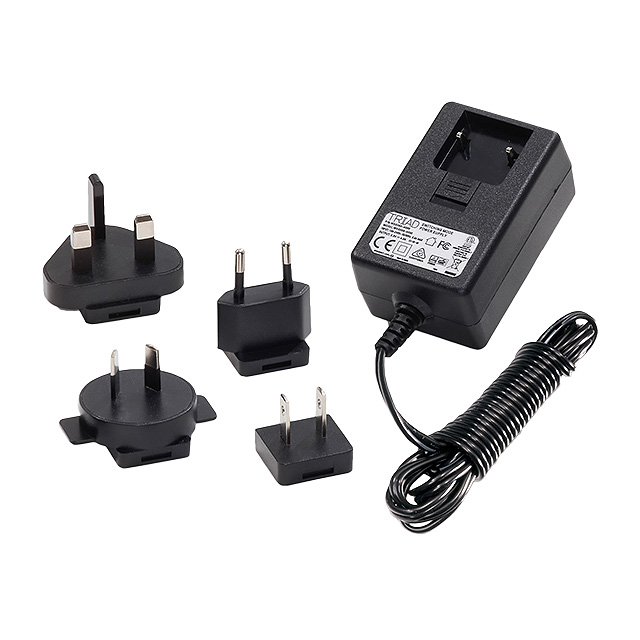

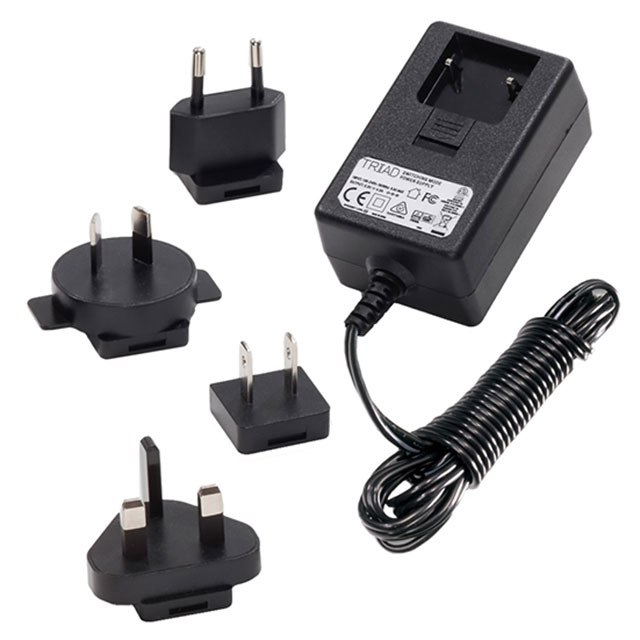

WSX Series

Catalog

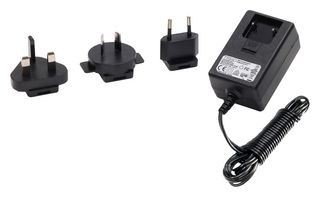

WALL MOUNT AC ADAPTERS 100-240V WALL PLUG-IN PWR SUPPLY, INTERCHANGEABLE INPUT PLUGS (US,UK,AU/NZ,EU,CN), 6VDCA.4000MA, CUL/IEC/EN 62368, LEVEL VI, 2009/125/EC CENTER POS, PLUG = 2.1MM(ID) X 5.5MM(OD) X 11MM(L)

Part	Efficiency	Input Connector	Form	Operating Temperature [Max]	Cord Length	Cord Length	Polarization	Voltage - Output	Power (Watts)	Approval Agency	Applications	Input Type	Output Connector [x]	Output Connector [diameter]	Output Connector	No Load Power Consumption	Current - Output (Max) [Max]	Region Utilized	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input [Max]	Voltage - Input [Min]
Triad Magnetics WSX060-4000	Level VI	Multi-Blade	Wall Mount	45 °C	1.22 m	48 in	Positive Center	5.9 V	24 W	CE cETLus FCC GS RCM	ITE (Commercial)	Multi-Blade (Included)	11 mm	2.1 mm 5.5 mm	Barrel Plug	100 mW	4 A	International	47.5 mm	1.87 "	1.38 in	76.8 mm	35 mm	3.02 "	264 VAC	90 VAC
Triad Magnetics WSX240-1000-R13	Level VI	Multi-Blade	Wall Mount	45 °C	1.83 m	72 in	Negative Center	24 V	24 W	CE cETLus FCC GS RCM	ITE (Commercial)	Multi-Blade (Included)	11 mm	2.5 mm 5.5 mm	Barrel Plug	100 mW	1 A	International	47.5 mm	1.87 "	1.38 in	76.8 mm	35 mm	3.02 "	264 VAC	90 VAC
Triad Magnetics WSX180-1330-R	Level VI	Multi-Blade	Wall Mount	45 °C	1.83 m	72 in	Negative Center	18 V	24 W	CE cETLus FCC GS RCM	ITE (Commercial)	Multi-Blade (Included)	11 mm	2.1 mm 5.5 mm	Barrel Plug	100 mW	1.33 A	International	47.5 mm	1.87 "	1.38 in	76.8 mm	35 mm	3.02 "	264 VAC	90 VAC
Triad Magnetics WSX240-1000	Level VI	Multi-Blade	Wall Mount	45 °C	1.83 m	72 in	Positive Center	24 V	24 W	CE cETLus FCC GS RCM	ITE (Commercial)	Multi-Blade (Included)	11 mm	2.1 mm 5.5 mm	Barrel Plug	100 mW	1 A	International	47.5 mm	1.87 "	1.38 in	76.8 mm	35 mm	3.02 "	264 VAC	90 VAC
Triad Magnetics WSX120-2000-R	Level VI	Multi-Blade	Wall Mount	45 °C	1.83 m	72 in	Negative Center	12 V	24 W	CE cETLus FCC GS RCM	ITE (Commercial)	Multi-Blade (Included)	11 mm	2.1 mm 5.5 mm	Barrel Plug	100 mW	2 A	International	47.5 mm	1.87 "	1.38 in	76.8 mm	35 mm	3.02 "	264 VAC	90 VAC
Triad Magnetics WSX050-4000	Level VI	Multi-Blade	Wall Mount	45 °C	1.22 m	48 in	Negative Center	5 V	20 W	CE cETLus FCC GS RCM	ITE (Commercial)	Multi-Blade (Included)	11 mm	2.1 mm 5.5 mm	Barrel Plug	100 mW	4 A	International	47.5 mm	1.87 "	1.38 in	76.8 mm	35 mm	3.02 "	264 VAC	90 VAC
Triad Magnetics WSX120-2000-R13	Level VI	Multi-Blade	Wall Mount	45 °C	1.83 m	72 in	Negative Center	12 V	24 W	CE cETLus FCC GS RCM	ITE (Commercial)	Multi-Blade (Included)	11 mm	2.5 mm 5.5 mm	Barrel Plug	100 mW	2 A	International	47.5 mm	1.87 "	1.38 in	76.8 mm	35 mm	3.02 "	264 VAC	90 VAC
Triad Magnetics WSX075-3200-R13	Level VI	Multi-Blade	Wall Mount	45 °C	1.22 m	48 in	Negative Center	7.5 V	24 W	CE cETLus FCC GS RCM	ITE (Commercial)	Multi-Blade (Included)	11 mm	2.5 mm 5.5 mm	Barrel Plug	100 mW	3.2 A	International	47.5 mm	1.87 "	1.38 in	76.8 mm	35 mm	3.02 "	264 VAC	90 VAC
Triad Magnetics WSX090-2500-13	Level VI	Multi-Blade	Wall Mount	45 °C	1.83 m	72 in	Positive Center	9 V	23 Watts	CE cETLus FCC GS RCM	ITE (Commercial)	Multi-Blade (Included)	11 mm	2.5 mm 5.5 mm	Barrel Plug	100 mW	2.5 A	International	47.5 mm	1.87 "	1.38 in	76.8 mm	35 mm	3.02 "	264 VAC	90 VAC
Triad Magnetics WSX050-4000-R13	Level VI	Multi-Blade	Wall Mount	45 °C	1.22 m	48 in	Negative Center	5 V	20 W	CE cETLus FCC GS RCM	ITE (Commercial)	Multi-Blade (Included)	11 mm	2.5 mm 5.5 mm	Barrel Plug	100 mW	4 A	International	47.5 mm	1.87 "	1.38 in	76.8 mm	35 mm	3.02 "	264 VAC	90 VAC
