STW8Q2 Series
Manufacturer: Seoul Semiconductor Inc.
Beta
⌘K

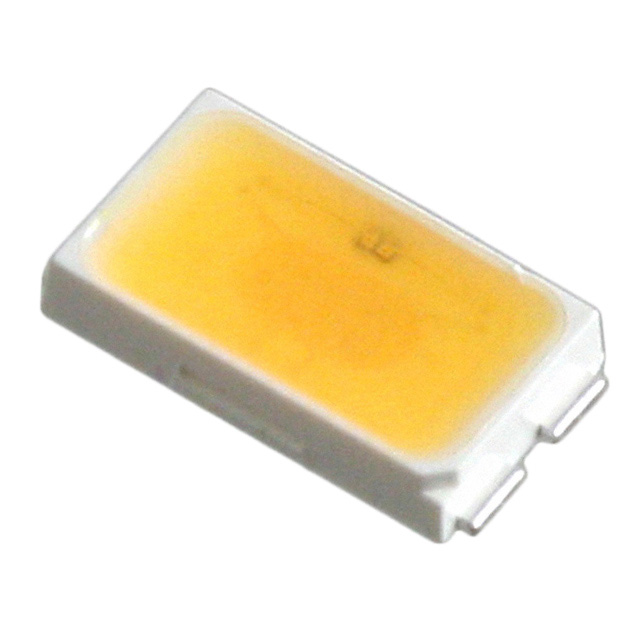

LED ACRICH COOL WHITE 6500K 5630
| Part | Thermal Resistance of Package | Flux @ 25°C, Current - Test [Max] | Flux @ 25°C, Current - Test [Min] | Package / Case | Supplier Device Package | CRI (Color Rendering Index) | CCT (K) | CCT (K) [Min] | CCT (K) [Max] | Voltage - Forward (Vf) (Typ) | Current - Max [Max] | Current - Test | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lumens/Watt @ Current - Test | Mounting Type | Color | Viewing Angle | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Seoul Semiconductor Inc. | 15 °C/W | 33 lm | 31 lm | 4-SMD Flat Lead Exposed Pad | 5630 | 80 | 6500 K | 6000 K | 7000 K | 3.2 V | 160 mA | 100 mA | 0.039 in | 1 mm | 97 lm/W 103 lm/W | Surface Mount | Cool White | 120 ° | 3 mm | 5.2 mm | 0.205 " | 0.118 in |
