794621 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER SMD R/A 10POS 3MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Termination	Contact Shape	Contact Material	Number of Rows [custom]	Connector Type	Insulation Height	Insulation Height	Features	Insulation Material	Shrouding	Style	Insulation Color	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Material Flammability Rating	Mounting Type	Contact Finish - Post	Contact Type	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Voltage Rating	Pitch - Mating	Pitch - Mating

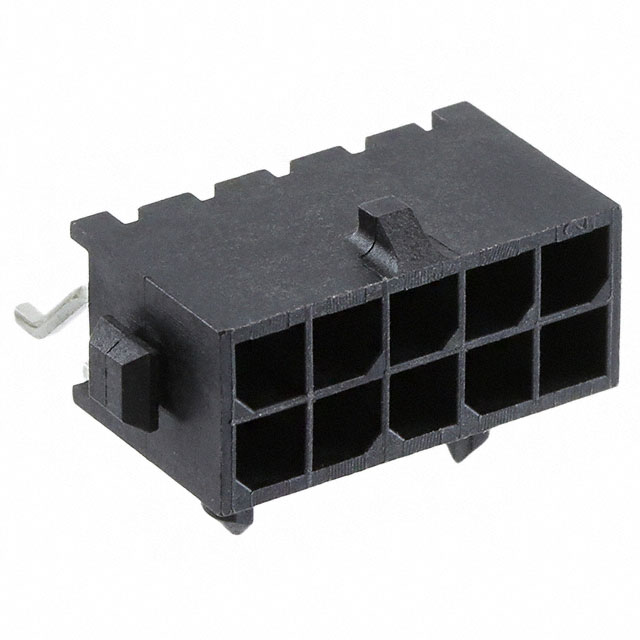

TE Connectivity AMP Connectors 1-794621-0	2.54 µm	100 µin	General Purpose	-40 C	105 ░C	Tin-Lead	Solder	Square	Brass	2	Header	0.29 in	7.37 mm	Board Lock	Nylon Polyamide (PA)	Shrouded - 4 Wall	Board to Cable/Wire	Black	Varies by Wire Gauge	100 çin	2.54 çm	10	UL94 V-0	Right Angle Surface Mount	Tin-Lead	Male Pin	Locking Ramp	0.118 in	3 mm	All	250 V	3 mm	0.118 in

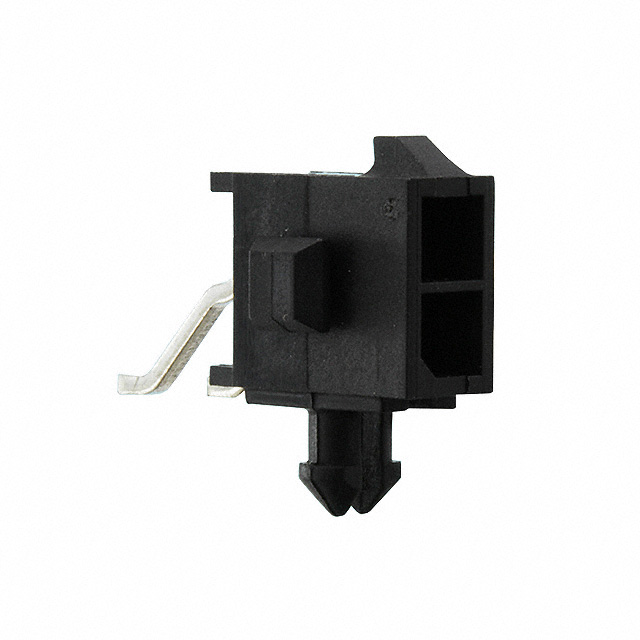

TE Connectivity AMP Connectors 794621-2	2.54 µm	100 µin	General Purpose	-40 C	105 ░C	Tin-Lead	Solder	Square	Brass	2	Header	0.29 in	7.37 mm	Board Lock	Nylon Polyamide (PA)	Shrouded - 4 Wall	Board to Cable/Wire	Black	Varies by Wire Gauge	100 çin	2.54 çm	2	UL94 V-0	Right Angle Surface Mount	Tin-Lead	Male Pin	Locking Ramp	0.118 in	3 mm	All	250 V
TE Connectivity AMP Connectors 3-794621-2	2.54 µm	100 µin	General Purpose	-40 C	105 ░C		Solder	Square	Brass	2	Header	0.29 in	7.37 mm	Board Lock	Nylon Polyamide (PA)	Shrouded - 4 Wall	Board to Cable/Wire	Black	Varies by Wire Gauge	100 çin	2.54 çm	2	UL94 V-0	Right Angle Surface Mount	Tin	Male Pin	Locking Ramp	0.118 in	3 mm	All	250 V
