HF319 Series

Catalog

CBL RIBN 50COND 0.05 GRAY 50'

Part	Insulation Resistance	Conductor Material	First Conductor Mark	Ratings	Length	Length	Shielding	Number of Conductors	Cable Type	Voltage	Jacket (Insulation) Material	Jacket Color	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Thickness	Ribbon Thickness	Conductor Strand	Conductor Strand [custom]	Pitch	Pitch	Length [x]	Length [x]	Ribbon Width [custom]	Ribbon Width [custom]	Features	Spool Size [x]	Spool Size [x]	Length	Number of Conductors [custom]	Number of Conductors [custom]
3M Electronic Specialty HF319/50 (100')	10 GOhm	Copper Alloy Silver Coated	Blue	UL Style 21682	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Unshielded	50	Flat Cable	300 VDC	Polyolefin (PO)	Gray	28 AWG	-40 C	105 ░C	0.89 mm	0.035 in	40 AWG	19	0.05 in	1.27 mm	50 ft	15.24 m	2.5 in	63.5 mm	Zippable
3M Electronic Specialty HF319/25 100	10 GOhm	Copper Alloy Silver Coated	Blue	UL Style 21682	7.62 m 30.48 m 304.8 mm	1 ft 25 ft 100 '	Unshielded		Flat Cable	300 VDC	Polyolefin (PO)	Gray	28 AWG	-40 C	105 ░C	0.89 mm	0.035 in	40 AWG	19	0.05 in	1.27 mm	50 ft	15.24 m	1.25 in	31.75 mm	Zippable	30.48 m	100 ft	Enter Number of Feet in Order Quantity	25

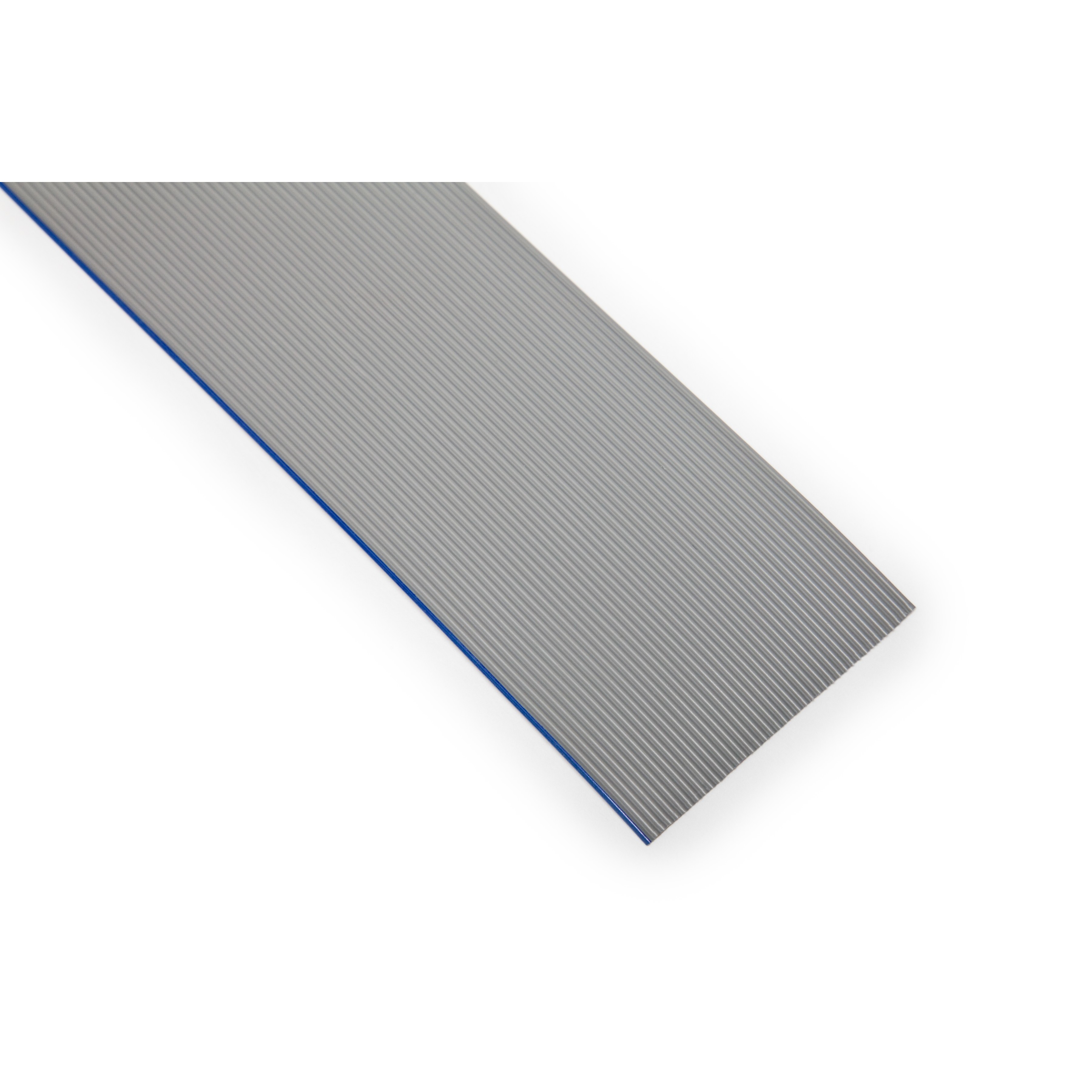

3M Electronic Specialty HF319/26SF	10 GOhm	Copper Alloy Silver Coated	Blue				Unshielded	26	Flat Cable	300 VDC	Polyolefin (PO)	Gray	28 AWG	-40 C	105 ░C	0.89 mm	0.035 in	40 AWG	19	0.05 in	1.27 mm			1.3 in	33.02 mm	Splice Free
3M Electronic Specialty HF319/14 100	10 GOhm	Copper Alloy Silver Coated	Blue	UL Style 21682	7.62 m 30.48 m 304.8 mm	1 ft 25 ft 100 '	Unshielded	14	Flat Cable	300 VDC	Polyolefin (PO)	Gray	28 AWG	-40 C	105 ░C	0.89 mm	0.035 in	40 AWG	19	0.05 in	1.27 mm	50 ft	15.24 m	0.7 in	17.78 mm	Zippable
3M Electronic Specialty HF319/20 (300')	10 GOhm	Copper Alloy Silver Coated	Blue	UL Style 21682	7.62 m 30.48 m 91440 mm	25 ft 100 ' 3600 in	Unshielded	20	Flat Cable	300 VDC	Polyolefin (PO)	Gray	28 AWG	-40 C	105 ░C	0.89 mm	0.035 in	40 AWG	19	0.05 in	1.27 mm			1 in	25.4 mm	Zippable
3M Electronic Specialty HF319/30 (100')	10 GOhm	Copper Alloy Silver Coated	Blue	UL Style 21682	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Unshielded	30	Flat Cable	300 VDC	Polyolefin (PO)	Gray	28 AWG	-40 C	105 ░C	0.89 mm	0.035 in	40 AWG	19	0.05 in	1.27 mm	50 ft	15.24 m	1.5 in	38.1 mm	Zippable	30.48 m	100 ft	Enter Number of Feet in Order Quantity
3M Electronic Specialty HF319/06 (300')	10 GOhm	Copper Alloy Silver Coated	Blue	UL Style 21682	3.05 m 7.62 m 30.48 m 304.8 mm 91440 mm	1 ft 10 ft 25 ft 100 ' 3600 in	Unshielded	6	Flat Cable	300 VDC	Polyolefin (PO)	Gray	28 AWG	-40 C	105 ░C	0.89 mm	0.035 in	40 AWG	19	0.05 in	1.27 mm	50 ft	15.24 m	0.3 in	7.62 mm	Zippable	91.44 m	300 ft	Enter Number of Feet in Order Quantity
3M Electronic Specialty HF319/16 (300')	10 GOhm	Copper Alloy Silver Coated	Blue	UL Style 21682	3.05 m 7.62 m 30.48 m 304.8 mm 91440 mm	1 ft 10 ft 25 ft 100 ' 3600 in	Unshielded	16	Flat Cable	300 VDC	Polyolefin (PO)	Gray	28 AWG	-40 C	105 ░C	0.89 mm	0.035 in	40 AWG	19	0.05 in	1.27 mm	50 ft	15.24 m	0.8 in	20.32 mm	Zippable
3M Electronic Specialty HF319/26					30.48 m	100 '
3M Electronic Specialty HF319/10 (300')	10 GOhm	Copper Alloy Silver Coated	Blue	UL Style 21682	3.05 m 7.62 m 30.48 m 304.8 mm 91440 mm	1 ft 10 ft 25 ft 100 ' 3600 in	Unshielded		Flat Cable	300 VDC	Polyolefin (PO)	Gray	28 AWG	-40 C	105 ░C	0.89 mm	0.035 in	40 AWG	19	0.05 in	1.27 mm	50 ft	15.24 m	0.5 in	12.7 mm	Zippable					10
