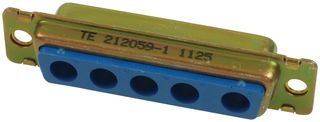

212059 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN D-SUB HOUSING RCPT 5POS
| Part | Color | Note | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Number of Rows | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Contact Type | Connector Style | Mounting Type | Flange Feature | Shell Material, Finish | Shell Finish Thickness | Shell Finish Thickness | Shell Material, Finish [custom] | Shell Material, Finish [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | Contacts Not Included | Polyester Glass Filled | 125 °C | -50 °C | Receptacle for Female Contacts | 1 | 3 | DB B | 5W5 | Coax or Power | Combo D-Sub | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Brass Gold Plated | ||||
 TE Connectivity AMP Connectors | Black | Contacts Not Included | Polyester Glass Filled | 125 °C | -50 °C | Receptacle for Female Contacts | 1 | 3 | DB B | 5W5 | Coax or Power | Combo D-Sub | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Cadmium Plated Steel | ||||
 TE Connectivity AMP Connectors | Blue | Contacts Not Included | Polyester Glass Filled | 125 °C | -50 °C | Receptacle for Female Contacts | 1 | 3 | DB B | 5W5 | Coax or Power | Combo D-Sub | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | 5.08 µm | 200 µin | Yellow Chromate Plated Zinc | Steel |
