CC HV Series

Manufacturer: YAGEO

Catalog

SMD MULTILAYER CERAMIC CAPACITOR, 1800 PF, 630 V, 1206 [3216 METRIC], ± 5%, C0G / NP0

Part	Tolerance	Thickness (Max) [Max]	Thickness (Max) [Max]	Package / Case	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Features	Capacitance	Temperature Coefficient	Voltage - Rated	Thickness (Max) [Max] [custom]	Thickness (Max) [Max] [custom]	Package / Case

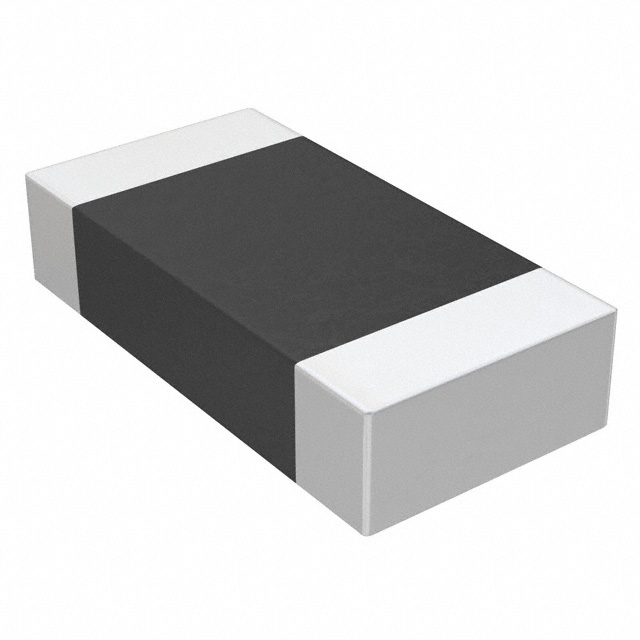

YAGEO CC1206JKNPOZBN182	5 %	1.45 mm	0.057 "	1206 (3216 Metric)	General Purpose	-55 C	125 °C	MLCC Surface Mount	0.063 "	0.126 "	3.2 mm	1.6 mm	630 V	High Voltage	1800 pF	C0G NP0
YAGEO CC1808JKNPODBN330	5 %	1.45 mm	0.057 "	1808 (4520 Metric)	General Purpose	-55 C	125 °C	MLCC Surface Mount	0.079 in	0.177 in	4.5 mm	2 mm	2000 V	High Voltage	33 pF	C0G NP0	2 kV
YAGEO CC1210KKX7RBBB104	10 %			1210	General Purpose	-55 C	125 °C	MLCC Surface Mount	0.098 in	0.126 "	3.2 mm	2.5 mm	500 V	High Voltage	100000 pF	X7R		0.087 in	2.2 mm	3225 Metric
YAGEO CC1210JKNPOCBN101	5 %	1.45 mm	0.057 "	1210	General Purpose	-55 C	125 °C	MLCC Surface Mount	0.098 in	0.126 "	3.2 mm	2.5 mm	1000 V	High Voltage	100 pF	C0G NP0	1 kV			3225 Metric
YAGEO CC1808JKNPODBN101	5 %	1.45 mm	0.057 "	1808 (4520 Metric)	General Purpose	-55 C	125 °C	MLCC Surface Mount	0.079 in	0.177 in	4.5 mm	2 mm	2000 V	High Voltage	100 pF	C0G NP0	2 kV

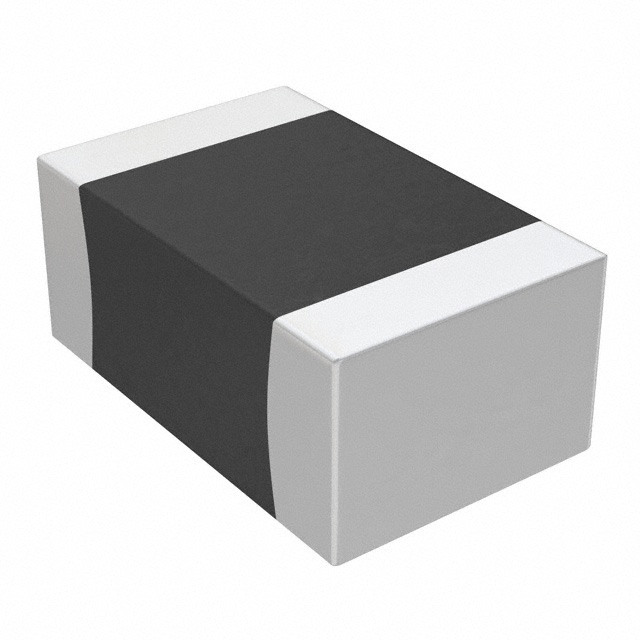

YAGEO CC0805GRNPOBBN121	2 %	0.7 mm	0.028 in	0805	General Purpose	-55 C	125 °C	MLCC Surface Mount	0.049 "	0.079 in	2 mm	1.25 mm	500 V		120 pF	C0G NP0
