3220-14 Series

Manufacturer: CNC Tech

Catalog

CONN SHROUDED HEADER HDR 14 POS 1.27MM SOLDER ST THRU-HOLE

Part	Voltage Rating	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Contact Shape	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Pitch - Mating	Pitch - Mating	Termination	Contact Length - Post	Contact Length - Post	Shrouding	Number of Rows [custom]	Insulation Color	Mounting Type	Style	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Mating	Features	Connector Type	Number of Positions	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish - Post
CNC Tech 3220-14-0100-00	50 VAC	0.213 "	5.4 mm	0.05 in	1.27 mm	UL94 V-0	Square	Nylon 9T Polyamide (PA9T)	-40 C	105 ░C	Push-Pull	1.27 mm	0.05 in	Solder	0.083 in	2.11 mm	Shrouded - 4 Wall	2	Black	Through Hole	Board to Cable/Wire	All	Male Pin	Flash	Brass	Gold	Keying Slot	Header	14

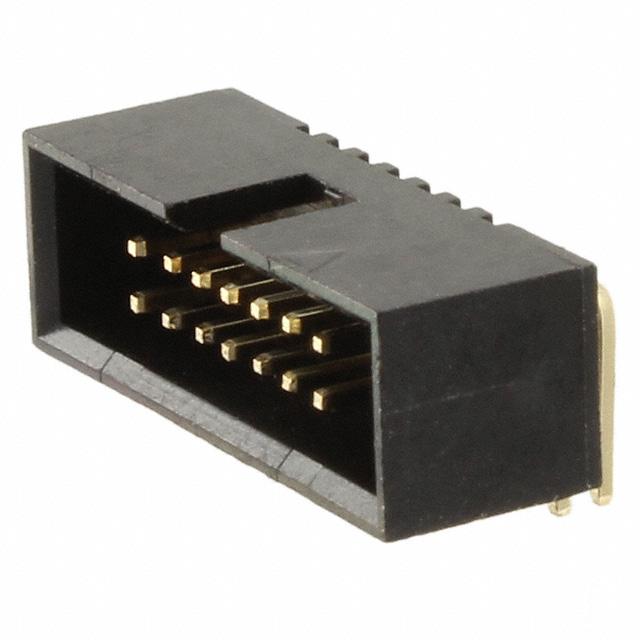

CNC Tech 3220-14-0200-00	50 VAC			0.05 in	1.27 mm	UL94 V-0	Square	Nylon 9T Polyamide (PA9T)	-40 C	105 ░C	Push-Pull	1.27 mm	0.05 in	Solder	0.083 in	2.11 mm	Shrouded - 4 Wall	2	Black	Right Angle Through Hole	Board to Cable/Wire	All	Male Pin	Flash	Brass	Gold	Keying Slot	Header	14	0.201 in	5.1 mm
CNC Tech 3220-14-0300-00-TR	50 VAC	0.213 "	5.4 mm	0.05 in	1.27 mm	UL94 V-0	Square	Nylon 9T Polyamide (PA9T)	-40 C	105 ░C	Push-Pull	1.27 mm	0.05 in	Solder			Shrouded - 4 Wall	2	Black	Surface Mount	Board to Cable/Wire	All	Male Pin	Flash	Brass	Gold	Keying Slot Pick and Place	Header	14			Flash	Gold
CNC Tech 3220-14-0300-00	50 VAC	0.213 "	5.4 mm	0.05 in	1.27 mm	UL94 V-0	Square	Nylon 9T Polyamide (PA9T)	-40 C	105 ░C	Push-Pull	1.27 mm	0.05 in	Solder			Shrouded - 4 Wall	2	Black	Surface Mount	Board to Cable/Wire	All	Male Pin	Flash	Brass	Gold	Keying Slot	Header	14			Flash	Gold
