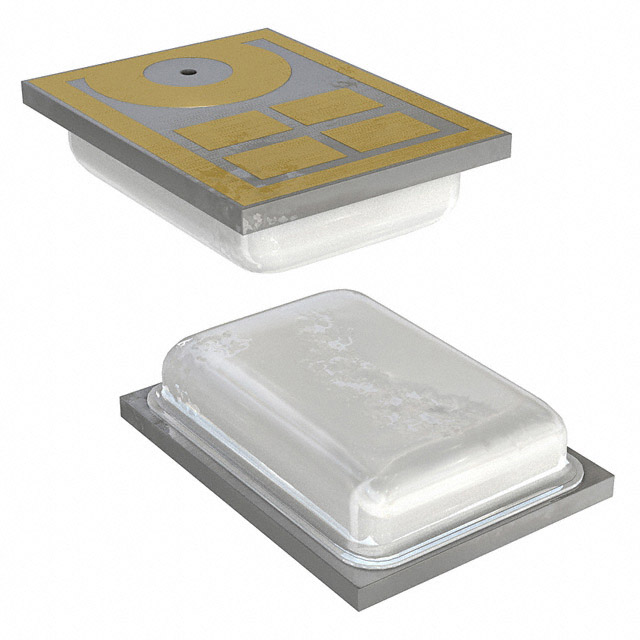

INMP521 Series
Manufacturer: TDK Corporation
Beta
⌘K
MIC MEMS DIGITAL PDM OMNI -26DB
| Part | Frequency Range [Min] | Frequency Range [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | S/N Ratio | Termination | Current - Supply | Output Type | Voltage Range [Min] | Voltage Range [Max] | Sensitivity | Port Location | Direction | Shape | Type | Height (Max) [Max] [z] | Height (Max) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 100 Hz | 16 kHz | 0.118 in | 3 mm | 4 mm | 0.157 in | 65 dB | Solder Pads | 1.2 mA | Digital PDM | 1.62 V | 3.63 V | -26 dB | Bottom | Omnidirectional | Rectangular | MEMS (Silicon) | 0.043 in | 1.1 mm |
