TRJ Series

Catalog

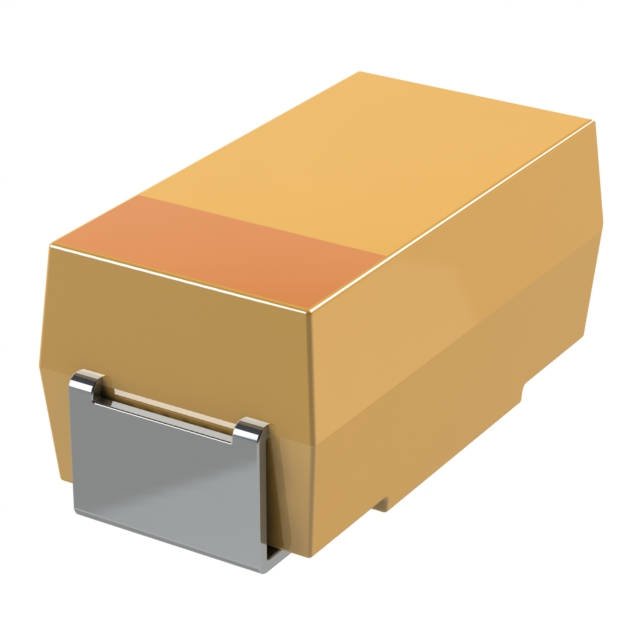

TANTALUM CAPACITORS - SOLID SMD 10V 10UF 10% 1210 ES R= 2.2 OHM

Part	ESR (Equivalent Series Resistance)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Capacitance	Manufacturer Size Code	Type	Tolerance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Grade	Qualification	Ratings
KYOCERA AVX TRJB106K010RRJ	2.2 Ohms	General Purpose	-55 C	125 °C	10 V	3.5 mm	0.11 "	2.8 mm	0.138 in	Surface Mount	10 µF	B	Molded	10 %	1210 1411 (3528 Metric)	2.1 mm	0.083 in
KYOCERA AVX TRJA105M020RRJ	6.63 Ohm	General Purpose	-55 C	125 °C	20 V	3.2 mm	0.063 "	1.6 mm	0.126 "	Surface Mount	1 µF	A	Molded	20 %	1206 (3216 Metric)			1.8 mm	0.071 in
KYOCERA AVX TRJD685K050RRJ	700 mOhm	General Purpose	-55 C	125 °C	50 VDC	7.3 mm	0.169 "	4.3 mm	0.287 "	Surface Mount	6.8 µF	D	Molded	10 %	2917 (7343 Metric)	3.1 mm	0.122 in
KYOCERA AVX TRJC476M010SRJ
KYOCERA AVX TRJC106M035RRJ	800 mOhm	Automotive	-55 C	125 °C	35 V	6 mm	0.126 in	3.2 mm	0.236 in	Surface Mount	10 µF		Molded	20 %	2312 (6032 Metric)					Automotive	AEC-Q200	AEC-Q200
KYOCERA AVX TRJB685K016SRJ
KYOCERA AVX TRJD106M035S0250V
