PCA.1S Series

Circular Push Pull Connectors STRAIGHT PLUG CABLE COLLET

Manufacturer: LEMO

Catalog

Circular Push Pull Connectors STRAIGHT PLUG CABLE COLLET

Catalog

Circular Push Pull Connectors STRAIGHT PLUG CABLE COLLET

Part	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Primary Material	Contact Material	Backshell Material, Plating	Shell Size - Insert	Insert Material	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Shell Material	Mounting Type	Connector Type	Contact Finish - Mating	Number of Positions	Features	Shell Finish	Fastening Type	Shielding	Current Rating (Amps)	Color	Material Flammability Rating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Shield Termination	Connector Style	Dielectric Material	Contact Termination	Body Material	Cable Group	Housing Color	Body Finish	Impedance	Mating Cycles	Center Contact Plating	Center Contact Material	Number of Ports	Cable Opening [custom]
LEMO PCA.1S.302.CLLC32Z	-55 °C	250 °C	Keyed	Metal	Brass Bronze	Brass Chrome	302	Polyetheretherketone (PEEK)	IP50	2.2 mm 3.2 mm	0.087 in 0.126 in	Brass	Free Hanging (In-Line)	Female Sockets Male Pins Receptacle	Gold	2	Backshell	Chrome	Push-Pull	Shielded	15 A	Silver	UL94 V-0
LEMO PCA.1S.306.CLLK72	-55 °C	250 °C	Keyed	Metal	Brass Bronze	Brass Chrome	306	Polyetheretherketone (PEEK)	IP50	6.2 mm 7.2 mm	0.244 in 0.283 in	Brass	Free Hanging (In-Line)	Female Sockets Male Pins Receptacle	Gold	6	Backshell	Chrome	Push-Pull	Shielded	7 A	Silver	UL94 V-0

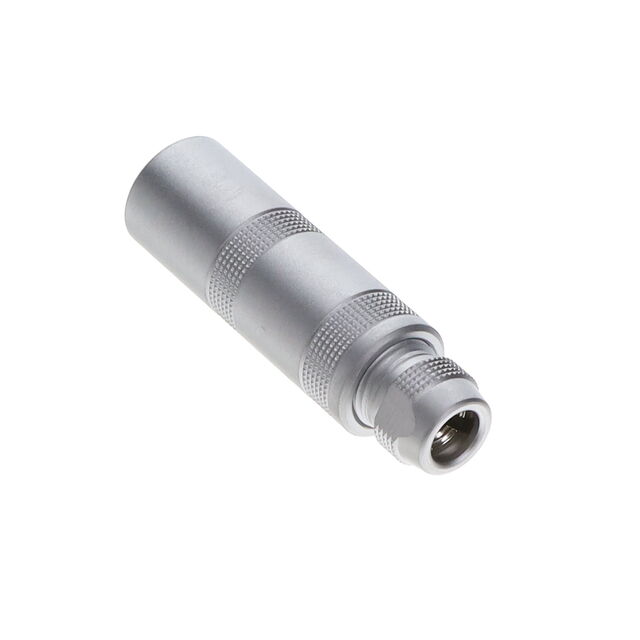

LEMO PCA.1S.304.CLLC42	-55 °C	250 °C	Keyed	Metal	Brass Bronze	Brass Chrome	304	Polyetheretherketone (PEEK)	IP50			Brass	Free Hanging (In-Line)	Female Sockets Male Pins Receptacle	Gold	4	Backshell	Chrome	Push-Pull	Shielded	10 A	Silver	UL94 V-0	0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO PCA.1S.130.CTLC52	-55 °C	250 °C	Keyed	Metal	Bronze	Brass Chrome		Polytetrafluoroethylene (PTFE)	IP50			Brass	Free Hanging (In-Line)	Receptacle Female Sockets	Gold	1	Backshell	Chrome	Push-Pull	Shielded	25 A	Silver						0.165 in 0.205 in	4.2 mm	5.2 mm
LEMO PCA.1S.302.CLLC32	-55 °C	250 °C	Keyed	Metal	Brass Bronze	Brass Chrome	302	Polyetheretherketone (PEEK)	IP50	2.2 mm 3.2 mm	0.087 in 0.126 in	Brass	Free Hanging (In-Line)	Female Sockets Male Pins Receptacle	Gold	2	Backshell	Chrome	Push-Pull	Shielded	15 A	Silver	UL94 V-0
LEMO PCA.1S.275.CTLC57Z	-55 °C	250 °C							IP50				Free Hanging (In-Line)	Female Socket Receptacle					Push-Pull												Clamp	Coaxial	Polytetrafluoroethylene (PTFE)	Solder	Brass	179B 187A 223 302 400 59B RG-58C	Silver	Chrome	75 Ohms	1000	Gold	Beryllium Copper
LEMO PCA.1S.250.CLLC32	-55 °C	250 °C							IP50				Free Hanging (In-Line)	Female Socket Receptacle					Push-Pull												Clamp	Coaxial	Polyetheretherketone (PEEK)	Solder	Brass	174 174A 178B 188A 196A 316B RG-122	Silver	Chrome	50 Ohms	1000	Gold	Beryllium Copper	1
LEMO FFB.1S.405.CTLC42	-55 °C	250 °C	Keyed	Metal	Bronze	Brass Chrome	405	Polytetrafluoroethylene (PTFE)	IP50			Brass	Free Hanging (In-Line)	Female Sockets Plug	Gold	1	Backshell	Chrome	Push-Pull	Shielded	8 A	Silver		0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO PCA.1S.302.CLLC42	-55 °C	250 °C	Keyed	Metal	Brass Bronze	Brass Chrome	302	Polyetheretherketone (PEEK)	IP50			Brass	Free Hanging (In-Line)	Female Sockets Male Pins Receptacle	Gold	2	Backshell	Chrome	Push-Pull	Shielded	15 A	Silver	UL94 V-0	0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO PCA.1S.304.CLLC66	-55 °C	250 °C	Keyed	Metal	Brass Bronze	Brass Chrome	304	Polyetheretherketone (PEEK)	IP50	0.232 in 0.256 in		Brass	Free Hanging (In-Line)	Female Sockets Male Pins Receptacle	Gold	4	Backshell	Chrome	Push-Pull	Shielded	10 A	Silver	UL94 V-0																					5.9 mm 6.5 mm
