R1410820 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

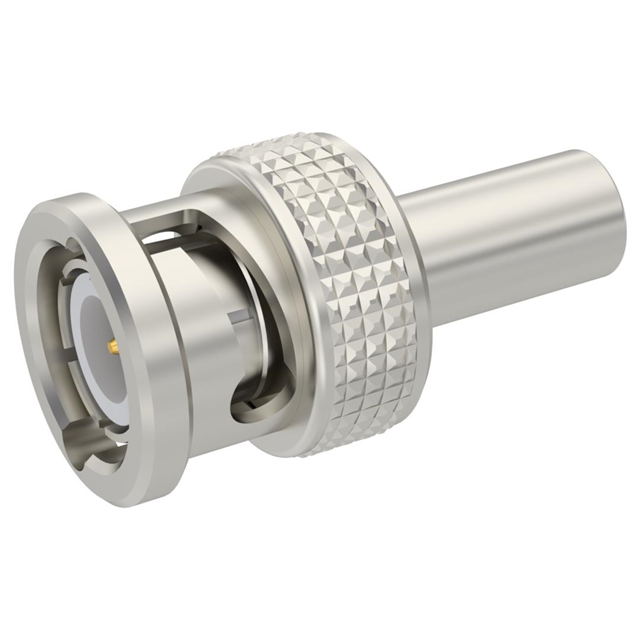

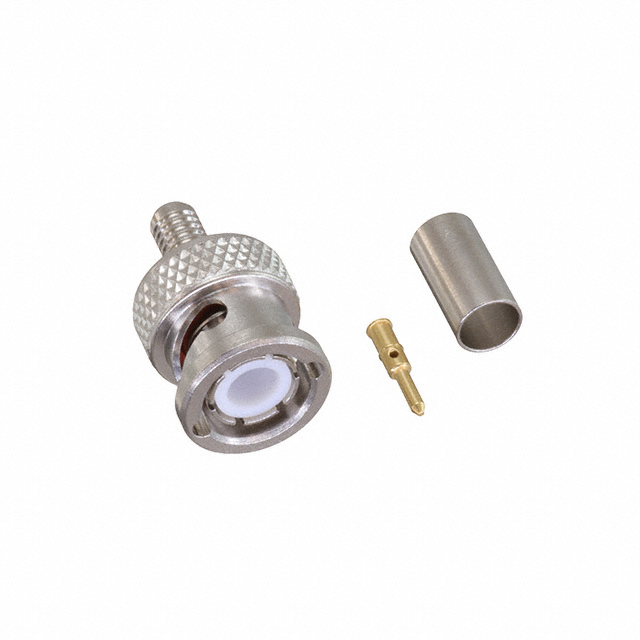

BNC M STR CR 5/50S C100
| Part | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Center Contact Plating | Mating Cycles | Dielectric Material | Fastening Type | Contact Termination | Connector Style | Center Contact Material | Number of Ports | Impedance | Connector Type | Cable Group | Cable Group | Frequency - Max [Max] | Shield Termination | Mounting Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Nickel | Brass | -65 ░C | 165 °C | 500 V | Gold | 500 | Polytetrafluoroethylene (PTFE) | Bayonet Lock | Crimp | BNC | Brass | 1 | 50 Ohms | Plug Male Pin | RG-58 | 141 | 4 GHz | Crimp | Free Hanging (In-Line) | Silver |
 Radiall USA, Inc. | Nickel | Brass | -65 ░C | 165 °C | 500 V | Gold | 500 | Polytetrafluoroethylene (PTFE) | Bayonet Lock | Crimp | BNC | Brass | 1 | 50 Ohms | Plug Male Pin | RG-58 | 141 | 4 GHz | Crimp | Free Hanging (In-Line) | Silver |
