601D Series

Catalog

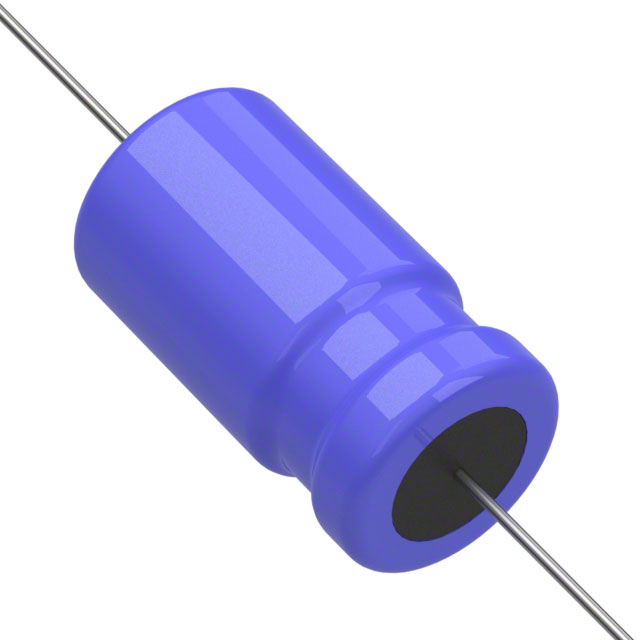

ALUMINUM ELECTROLYTIC CAPACITORS - AXIAL LEADED 50VOLTS 680UF -10% + 50%

Part	Package / Case	Ripple Current	Polarization	Size / Dimension Diameter	Size / Dimension Length	Lifetime	Applications	Tolerance (Negative)	Tolerance (Positive)	Mounting Type	Voltage - Rated	ESR (Equivalent Series Resistance)	Operating Temperature (Min)	Operating Temperature (Max)	Capacitance
Vishay Dale 601D687F050FL1	Axial Can	1.87 A 2.151 A	Polar	0.625 in	2.125 in	2000 Hrs	General Purpose	10 %	50 %	Through Hole	50 V	165 mOhm	-55 °C	105 °C	680 µF
Vishay Dale 601D109F025JS3	Axial Can	7.15 A 8.223 A	Polar	1 in	3.125 in	2000 Hrs	General Purpose	10 %	50 %	Through Hole	25 VAC	27 mOhm	-55 °C	105 °C	10000 µF
Vishay Dale 601D277F050FE7	Axial Can	810 mA	Polar	0.625 in	1.125 in	2000 Hrs	General Purpose	10 %	50 %	Through Hole	50 V	519 mOhm	-55 °C	105 °C	270 µF
Vishay Dale 601D758F020JS1	Axial Can		Polar	1 in	3.125 in	2000 Hrs	General Purpose	10 %	50 %	Through Hole	20 V		-55 °C	105 °C	7500 µF
Vishay Dale 601D298G020HS1	Axial Can		Polar	0.886 in	3.142 in	2000 Hrs	General Purpose			Through Hole	20 V		-55 °C	105 °C	2900 µF
Vishay Dale 601D108G025GJ3	Axial Can		Polar	0.75 in	1.625 in	2000 Hrs	General Purpose			Through Hole	25 VAC		-55 °C	105 °C	1000 µF
Vishay Dale 601D507G050GL1	Axial Can		Polar	0.75 in	2.125 in	2000 Hrs	General Purpose			Through Hole	50 V		-55 °C	105 °C	500 µF
Vishay Dale 601D107F250FT7	Axial Can	1.128 A 940 mA	Polar	0.625 in	3.625 in	2000 Hrs	General Purpose	10 %	50 %	Through Hole	250 V	1.057 Ohm	-55 °C	105 °C	100 µF
Vishay Dale 601D158F063GP1	Axial Can	3.26 A	Polar	0.76 in	2.642 in	2000 Hrs	General Purpose	10 %	50 %	Through Hole	63 V	80 mOhm	-55 °C	105 °C	1500 µF
Vishay Dale 601D227F063FE1	Axial Can	780 mA 936 mA	Polar	0.625 in	1.125 in	2000 Hrs	General Purpose	10 %	50 %	Through Hole	63 V	563 mOhm	-55 °C	105 °C	220 µF
