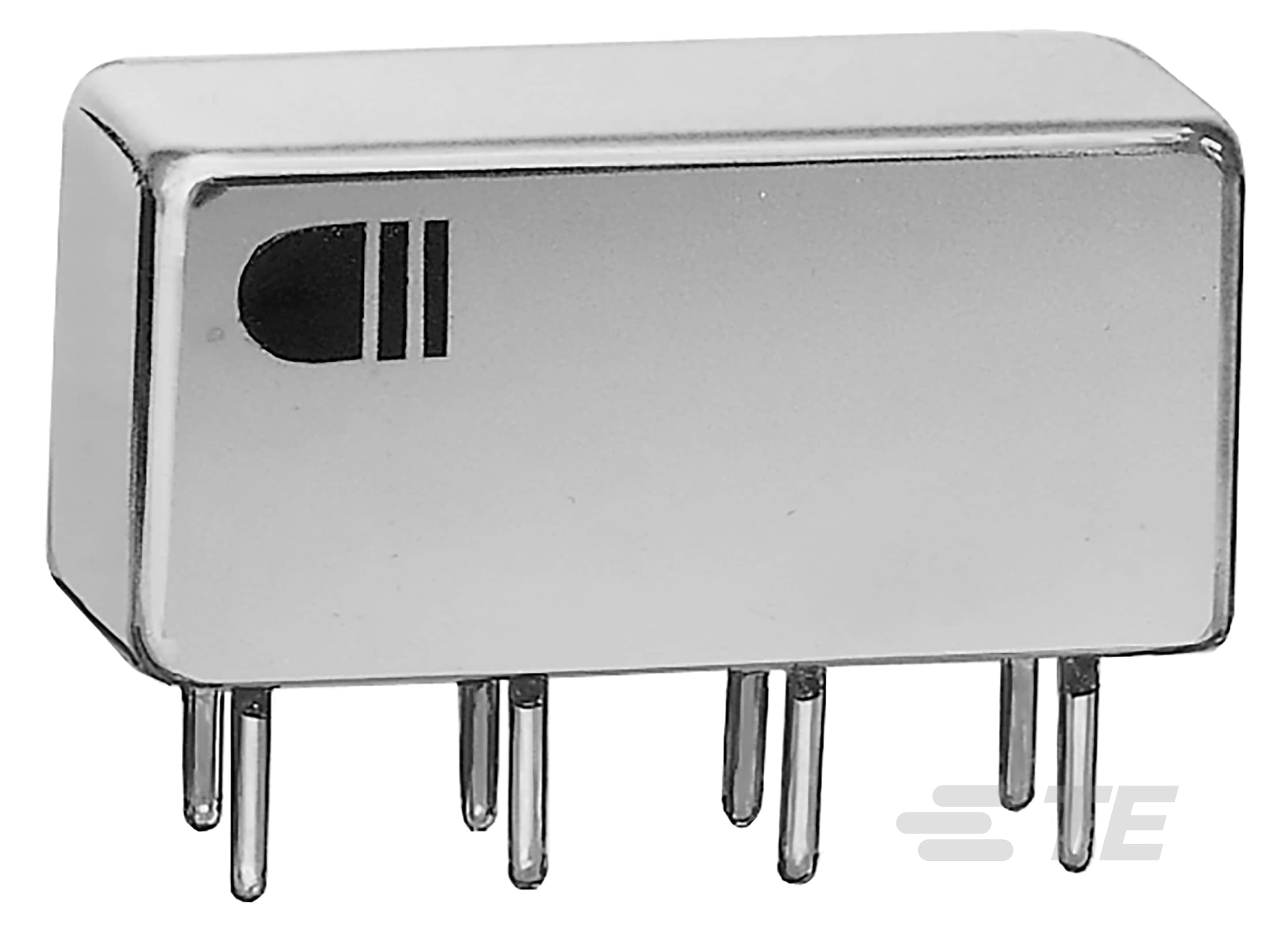

CII 3SBC Relay Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE DPDT 2A 26.5V
| Part | Coil Current | Contact Rating (Current) | Contact Form | Relay Type | Switching Voltage [Max] | Termination Style | Qualification | Release Time | Operate Time | Coil Voltage | Seal Rating | Mounting Type | Load - Max Switching | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Grade | Coil Resistance | Must Operate Voltage | Must Release Voltage | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 19.6 mA | 2 A | DPDT (2 Form C) | General Purpose | 28 VDC 115 VAC | Solder Hook | MIL-R-39016/37 | 4 ms | 4 ms | 26.5 VDC | Sealed - Hermetically | Chassis Mount | 56 W 230 VA | -65 ░C | 125 °C | Non Latching | Military | ||||
 TE Connectivity AMP Connectors | 19.6 mA | 2 A | DPDT (2 Form C) | General Purpose | 28 VDC 115 VAC | PC Pin | 4 ms | 4 ms | 26.5 VDC | Sealed - Hermetically | Through Hole | 56 W 230 VA | -65 ░C | 125 °C | Non Latching | 1.35 kOhms | 13.5 VDC | 1.5 VDC | |||
 TE Connectivity AMP Connectors | 19.6 mA | 2 A | DPDT (2 Form C) | General Purpose | 28 VDC 115 VAC | Solder Hook | MIL-R-39016/38 | 4 ms | 4 ms | 26.5 VDC | Sealed - Hermetically | Chassis Mount | 56 W 230 VA | -65 ░C | 125 °C | Non Latching | Military | ||||
 TE Connectivity AMP Connectors | 19.6 mA | 2 A | DPDT (2 Form C) | General Purpose | PC Pin | MIL-R-39016/13 | 4 ms | 4 ms | 26.5 VDC | Sealed - Hermetically | Through Hole | -65 ░C | 125 °C | Non Latching | Military | 13.5 VDC | 1.5 VDC | 28 VDC | |||
TE Connectivity AMP Connectors | |||||||||||||||||||||
TE Connectivity AMP Connectors | 19.6 mA | 2 A | DPDT (2 Form C) | General Purpose | 28 VDC 115 VAC | Solder Hook | 6 ms | 4 ms | 26.5 VDC | Sealed - Hermetically | Chassis Mount | 56 W 230 VA | -65 ░C | 125 °C | Non Latching | ||||||
TE Connectivity AMP Connectors | 19.6 mA | 2 A | DPDT (2 Form C) | General Purpose | PC Pin | MIL-R-39016/13 | 4 ms | 4 ms | 26.5 VDC | Sealed - Hermetically | Through Hole | -65 ░C | 125 °C | Non Latching | Military | 28 VDC | |||||
 TE Connectivity AMP Connectors | 19.6 mA | 2 A | DPDT (2 Form C) | General Purpose | PC Pin | MIL-R-39016/37 | 6 ms | 4 ms | 26.5 VDC | Sealed - Hermetically | Through Hole | -65 ░C | 125 °C | Non Latching | Military | 1.35 kOhms | 13.5 VDC | 1.5 VDC | 28 VDC | ||
TE Connectivity AMP Connectors | 8.9 mA | 2 A | DPDT (2 Form C) | General Purpose | PC Pin | MIL-R-39016/13 | 4 ms | 4 ms | 26.5 VDC | Sealed - Hermetically | Through Hole | -65 ░C | 125 °C | Non Latching | Military | 1.35 kOhms | 13.5 VDC | 1.5 VDC | 28 VDC | ||
TE Connectivity AMP Connectors | 19.6 mA | 2 A | DPDT (2 Form C) | General Purpose | 28 VDC 115 VAC | PC Pin | MIL-R-39016/37 | 6 ms | 4 ms | 26.5 VDC | Sealed - Hermetically | Through Hole | 56 W 230 VA | -65 ░C | 125 °C | Non Latching | Military | 13.5 VDC | 1.5 VDC |
