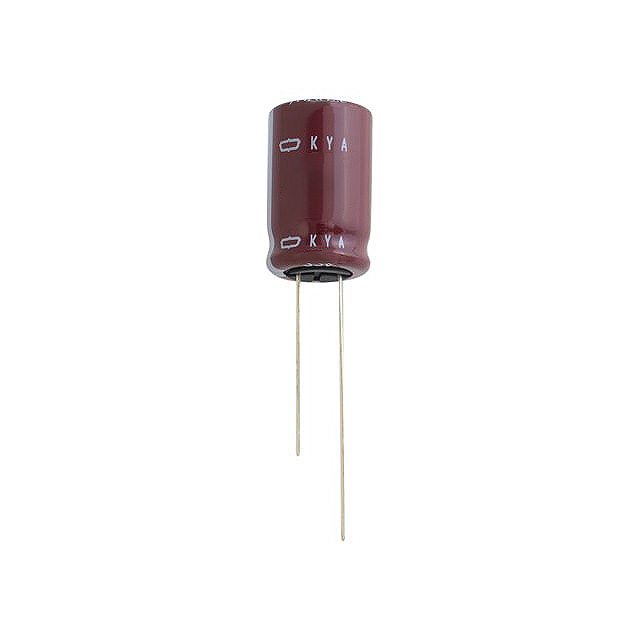

KYA Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 16VDC 1000UF TOL 20% 10X16MM

Part	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Impedance	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Voltage - Rated	Polarization	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Tolerance	Mounting Type	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Chemi-Con EKYA160ELL102MJ16S	1000 µF	-40 C	105 ░C	General Purpose	17.5 mm	0.689 in	60 mOhms	Can Radial	0.394 in	10 mm	7000 Hrs	16 V	Polar	780 mA	0.197 "	5 mm	20 %	Through Hole
Chemi-Con EKYA630ELL101MJC5S	100 µF	-40 C	105 ░C	General Purpose			110 mOhms	Can Radial	0.394 in	10 mm	7000 Hrs	63 V	Polar	290 mA	0.197 "	5 mm	20 %	Through Hole	725 mA	14 mm	0.551 in
Chemi-Con EKYA250ELL392ML25S	3900 µF	-40 C	105 ░C	General Purpose		26.5 mm	21 mOhms	Can Radial	0.63 in	16 mm	10000 Hrs	25 VDC	Polar	2.1975 A	0.295 in	7.5 mm	20 %	Through Hole	2.93 A			1.043 in
Chemi-Con EKYA160ELL152MJ20S	1.5 mF	-40 C	105 ░C	General Purpose			46 mOhms	Can Radial	0.394 in	10 mm	7000 Hrs	16 V	Polar	840 mA	0.197 "	5 mm	20 %	Through Hole	1.4 A	21.5 mm	0.846 "
Chemi-Con EKYA160ELL182MJ25S	1800 µF	-40 C	105 ░C	General Purpose		26.5 mm	42 mOhms	Can Radial	0.394 in	10 mm	7000 Hrs	16 V	Polar	990 mA	0.197 "	5 mm	20 %	Through Hole	1.65 A			1.043 in
