VPL Series

Catalog

CHASSIS MOUNT TRANSFORMER, SPLIT BOBBIN, 115V, 230V, 2 X 5V, 10 VA, 50HZ / 60HZ

Part	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Primary Winding(s)	Mounting Type	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Primary	Voltage - Secondary (Full Load)	Secondary Winding(s)	Termination Style	Weight	Weight	Power - Max [Max]	Weight [custom]	Weight [custom]	Weight [custom]	Weight [custom]

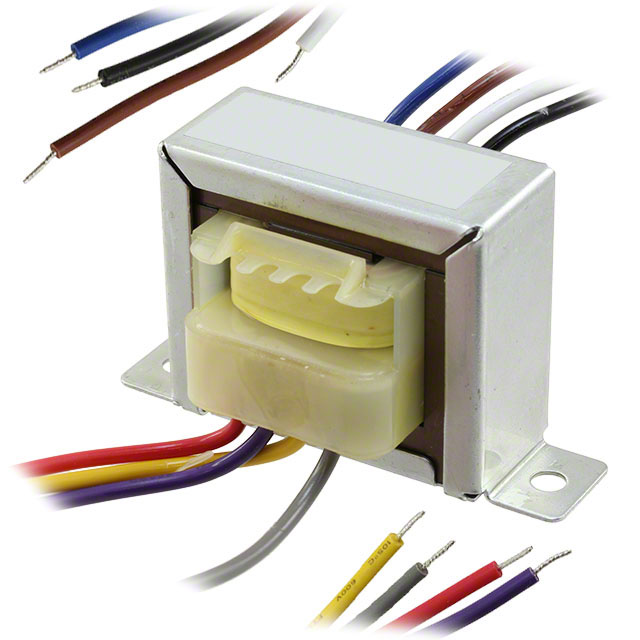

Triad Magnetics VPL10-1000	44.45 mm	71.44 mm	36.52 mm	Laminated Core	Dual	Chassis Mount	3500 Vrms	1 A	115 V 230 V	10 V	Dual	Wire Leads	0.7 lb	317.51 g	10 VA
Triad Magnetics VPL25-1000	49.22 mm	3.25 "	53.98 mm	Laminated Core	Dual	Chassis Mount	3500 Vrms	0.99 A	115 V 230 V	25.2 V	Dual	Wire Leads			25 VA	1.3 lbs	589.7 g

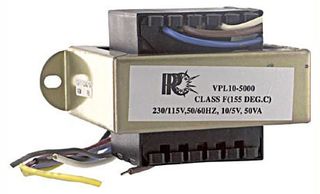

Triad Magnetics VPL10-500	36.52 mm	60.33 mm	36.52 mm	Laminated Core	Dual	Chassis Mount	3500 Vrms	500 mA	115 V 230 V	10 V	Dual	Wire Leads	0.4 lb	181.44 g	5 VA
Triad Magnetics VPL2-4000	44.45 mm	71.44 mm	36.52 mm	Laminated Core	Dual	Chassis Mount	3500 Vrms	4 A	115 V 230 V	2.5 V	Dual	Wire Leads	0.7 lb	317.51 g	10 VA

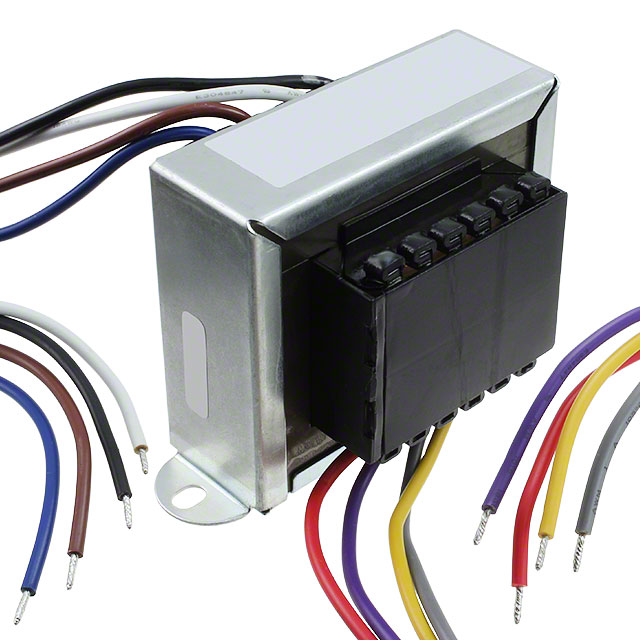

Triad Magnetics VPL20-2500	65.09 mm	4 "	2.25 "	Laminated Core	Dual	Chassis Mount	3500 Vrms	2.5 A	115 V 230 V	20 V	Dual	Wire Leads			50 VA			2.3 lbs	1 kg
