726-014 Series
Manufacturer: EDAC Inc.
Beta
⌘K

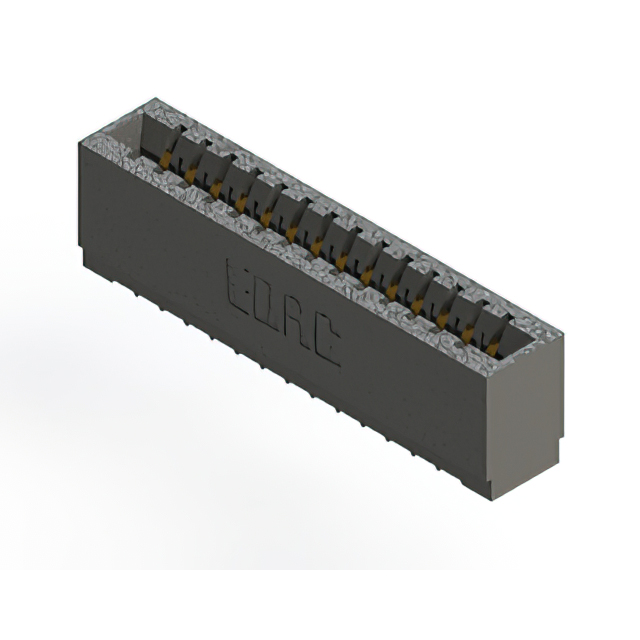

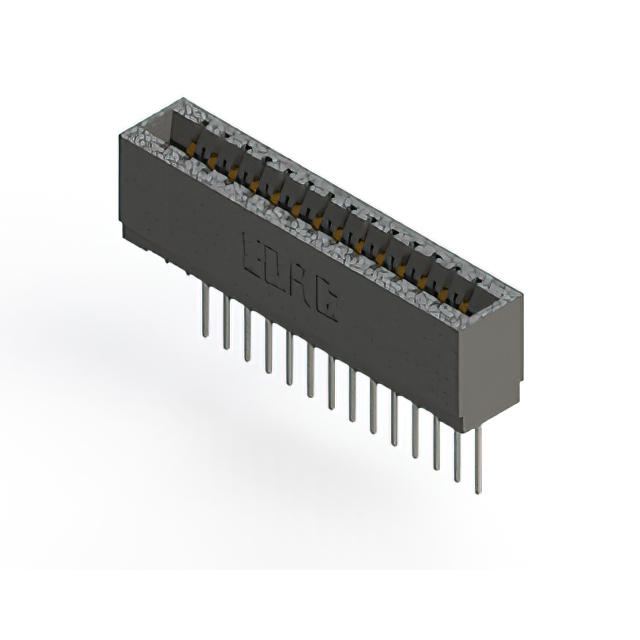

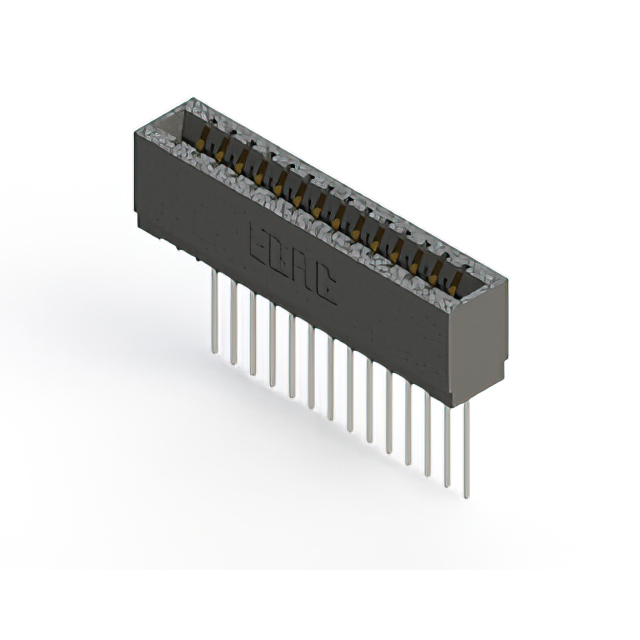

CONN EDGE SGL FMALE 14POS 0.125
| Part | Termination Rows | Material - Insulation | Contact Material | Number of Rows | Read Out | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Positions/Bay/Row | Contact Type | Termination | Card Type | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Gender | Color | Card Thickness [Max] | Card Thickness [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | 1 | Single | Through Hole | 30 Áin | 0.76 Ám | 14 | 14 | Cantilever | Press-Fit Wire Wrap | Non Specified - Single Edge | Gold | -40 C | 105 ░C | 3.18 mm | 0.125 in | Female | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | 1 | Single | Through Hole | 30 Áin | 0.76 Ám | 14 | 14 | Cantilever | Press-Fit | Non Specified - Single Edge | Gold | -40 C | 105 ░C | 3.18 mm | 0.125 in | Female | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | 1 | Single | Through Hole | 30 Áin | 0.76 Ám | 14 | 14 | Cantilever | Press-Fit Wire Wrap | Non Specified - Single Edge | Gold | -40 C | 105 ░C | 3.18 mm | 0.125 in | Female | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
