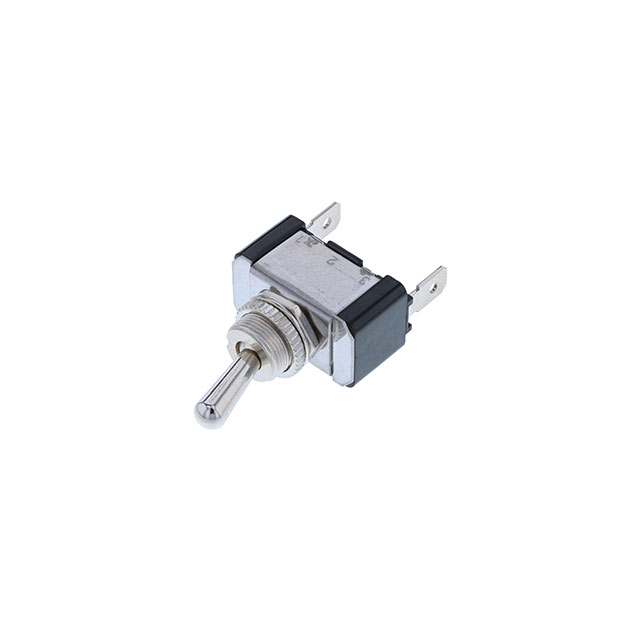

TA1-1A Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH TOGGLE SPST 20A 12V
| Part | Electrical Life (Cycles) | Switch Function | Bushing Thread Pitch | Bushing Thread | Bushing Thread Diameter | Actuator Type | Circuit | Operating Temperature (Min) | Operating Temperature (Max) | Actuator Length | Mounting Type | Illumination | Panel Cutout Diameter | Panel Cutout Shape | Quick Connect Size (0.250") | Termination Style | Voltage Rating - DC | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 6000 Cycles | On-Off | 0.75 mm | M12 x 0.75 | 12 mm | Standard Round | SPST | 0 °C | 65 °C | 15.9 mm | Panel Mount | Non-Illuminated | 12.2 mm | Circular | 0.25 in | Quick Connect | 12 V | 20 A |
