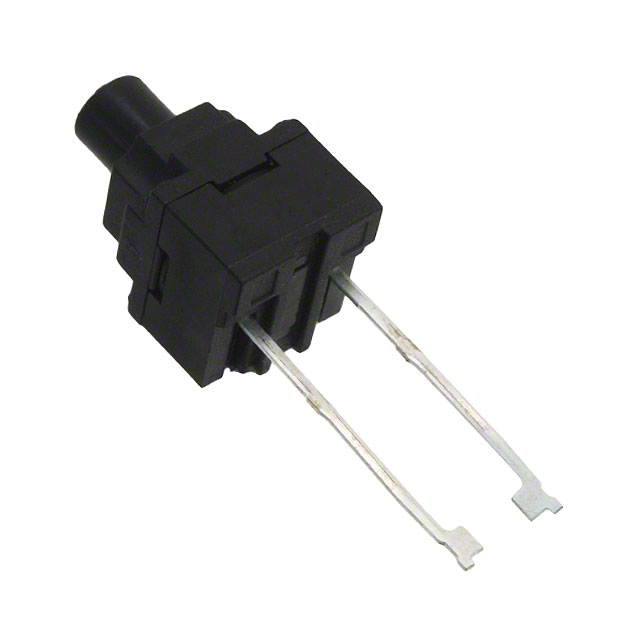

TL52A Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Mechanical Life | Contact Rating @ Voltage | Actuator Type | Actuator Height off PCB, Vertical | Operating Force | Ingress Protection | Circuit | Termination Style | Illumination | Outline [x] | Outline [y] | Actuator Orientation | Mounting Type | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.3 mm | 100000 Cycles | 0.05 A 12 VDC | Standard | 13 mm | 260 gf | IP67 - Dust Tight Waterproof | SPST-NO | PC Pin | Non-Illuminated | 8 mm | 8 mm | Top Actuated | Through Hole | Off-Mom | 85 °C | -25 °C |
