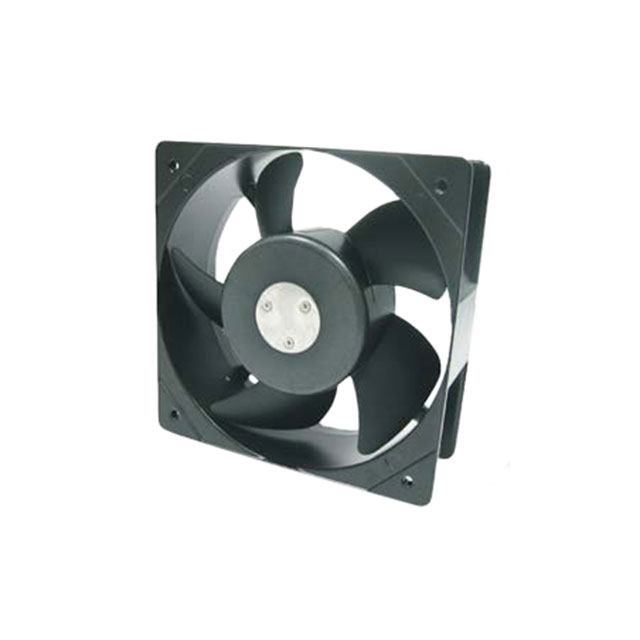

FKA2-20572 Series
Manufacturer: Qualtek
Beta
⌘K
FAN AXIAL 205X72MM 230VAC TERM
| Part | Material - Frame | Material - Blade | Current Rating (Amps) | Fan Type | Voltage - Rated | Weight | Weight | Bearing Type | Static Pressure | Static Pressure | Power (Watts) | Termination | Width [x] | Air Flow | Air Flow | Noise | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | RPM | Approval Agency | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | Aluminum | Plastic | 0.47 A | Tubeaxial | 230 VAC | 2.1 kg | 4.6 lbs | Ball | 124.5 Pa | 0.5 in H2O | 95.2 W | 2 | 72 mm | 665 CFM | 18.62 m³/min | 75.4 dB(A) | 205 mm | 205 mm | 70 °C | -10 °C | 3200 RPM | CE cURus TUV | |
Qualtek | Aluminum | Plastic | 880 mA | Tubeaxial | 115 VAC | 2.1 kg | 4.6 lbs | Ball | 124.5 Pa | 0.5 in H2O | 100 W | 2 | 72 mm | 665 CFM | 18.62 m³/min | 75.4 dB(A) | 205 mm | 205 mm | 70 °C | -10 °C | 3200 RPM | CE cURus TUV | |
Qualtek | Aluminum | Plastic | 0.47 A | Tubeaxial | 230 VAC | 2.1 kg | 4.6 lbs | Ball | 124.5 Pa | 0.5 in H2O | 95.2 W | 72 mm | 665 CFM | 18.62 m³/min | 75.4 dB(A) | 205 mm | 205 mm | 70 °C | -10 °C | 3200 RPM | CE cURus TUV | 2 Wire Leads |
