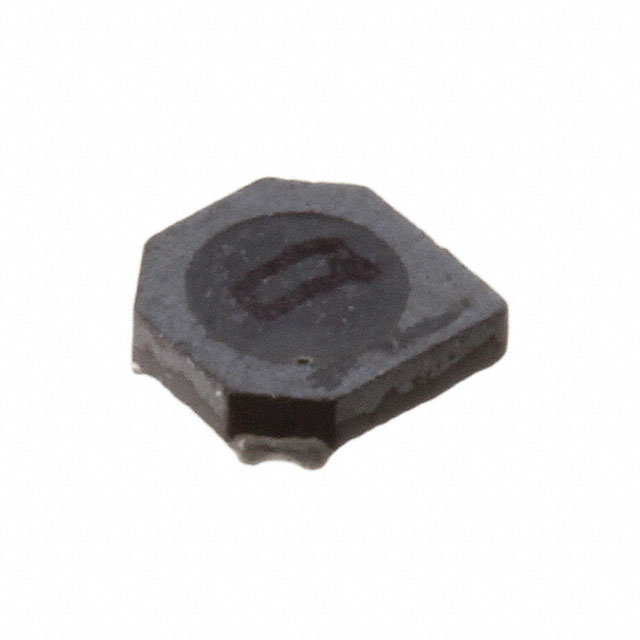

SRU3011 Series

Catalog

POWER INDUCTOR (SMD), 6.8 µH, 500 MA, SHIELDED, 460 MA, SRU3011 SERIES

Part	Current - Saturation (Isat)	Package / Case	Type	Mounting Type	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Q @ Freq	Current Rating (Amps)	Shielding	DC Resistance (DCR)	Material - Core	Inductance	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Bourns Inc. SRU3011-6R8Y	460 mA	Nonstandard	Drum Core Wirewound	Surface Mount	100 kHz	0.138 in	3.5 mm	3.3 mm	0.13 in	30 %	125 °C	-40 C	7 7.96 MHz	0.5 A	Shielded	245 mOhm	Ferrite	6.8 µH	85 MHz	1.2 mm	0.047 "
Bourns Inc. SRU3011-100Y	350 mA	Nonstandard	Drum Core Wirewound	Surface Mount	100 kHz	0.138 in	3.5 mm	3.3 mm	0.13 in	30 %	125 °C	-40 C	2.52 MHz 8	400 mA	Shielded	340 mOhm	Ferrite	10 µH	60 MHz	1.2 mm	0.047 "
Bourns Inc. SRU3011-1R5Y	1 A	Nonstandard	Drum Core Wirewound	Surface Mount	100 kHz	0.138 in	3.5 mm	3.3 mm	0.13 in	30 %	125 °C	-40 C	7 7.96 MHz	1.1 A	Shielded	57 mOhm	Ferrite	1.5 µH	180 MHz	1.2 mm	0.047 "
