396-088 Series
Manufacturer: EDAC Inc.
Beta
⌘K

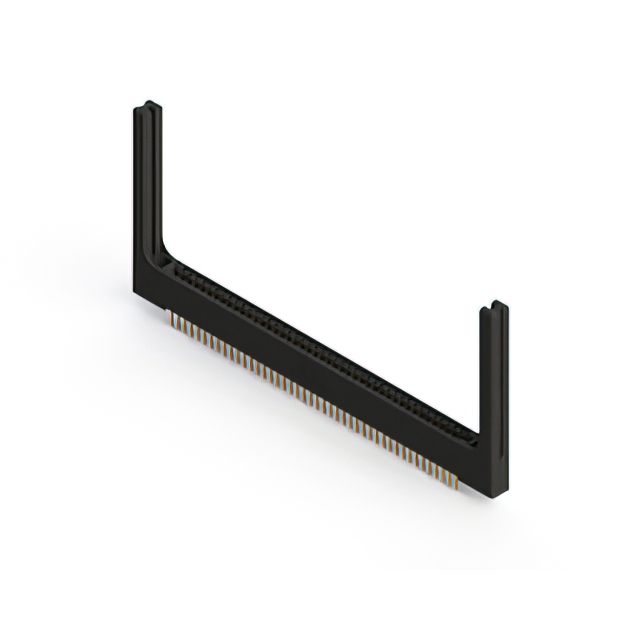

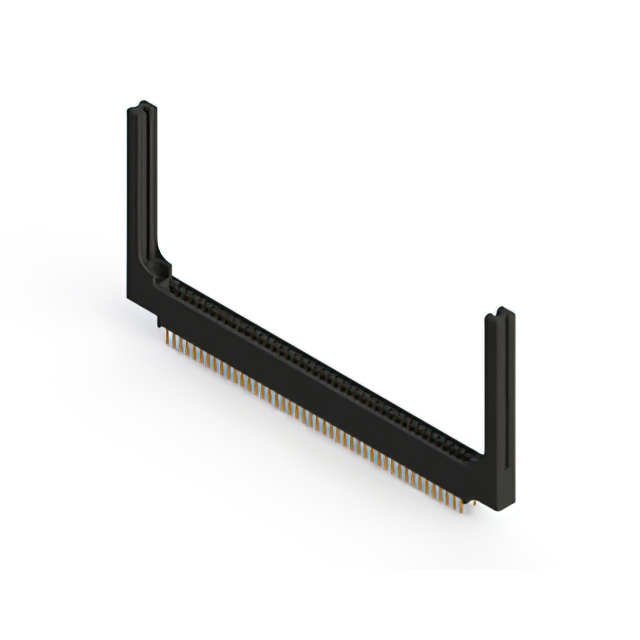

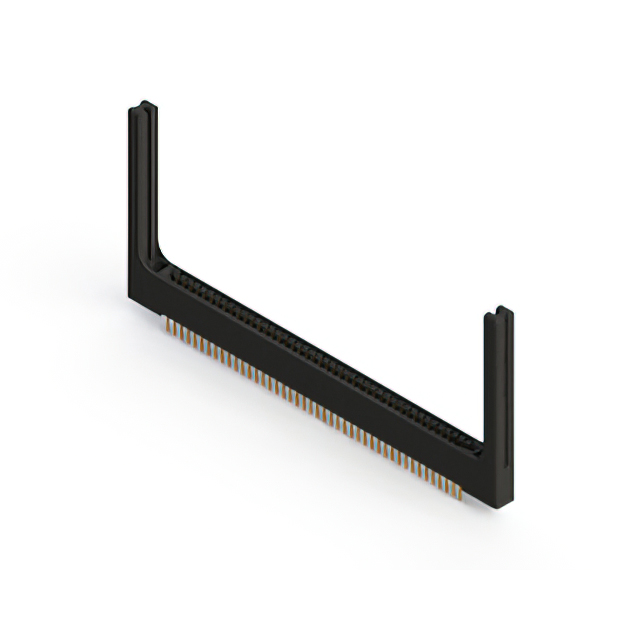

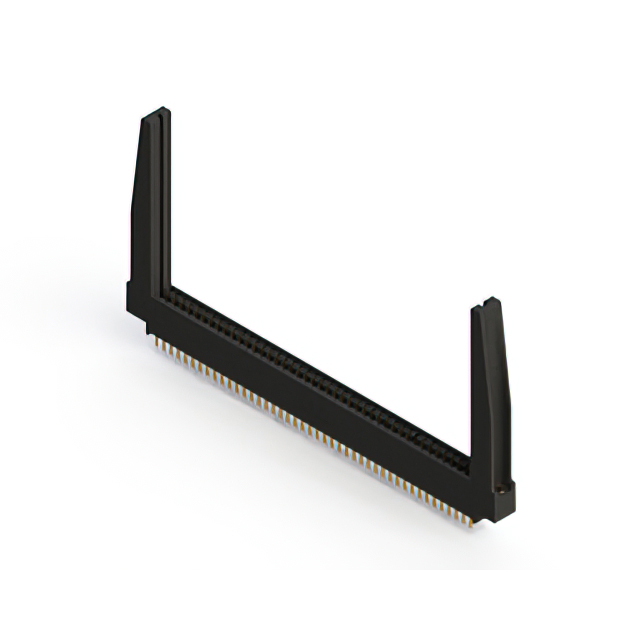

CONN EDGE DUAL FMALE 88POS 0.125
| Part | Termination Rows [custom] | Material - Insulation | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Pitch | Pitch | Flange Feature | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Gender | Number of Positions | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Mounting Type | Card Type | Number of Rows [custom] | Number of Positions/Bay/Row | Color | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | M3 Threaded Insert Top Mount Opening | Solder | 0.25 Ám | 10 Áin | Cantilever | Female | 88 | Copper Alloy | -40 C | 105 ░C | Dual | Through Hole | Non Specified - Dual Edge | 2 | 44 | Black | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | 4-40 Threaded Insert Top Mount Opening | Solder | 0.25 Ám | 10 Áin | Cantilever | Female | 88 | Copper Alloy | -40 C | 105 ░C | Dual | Through Hole | Non Specified - Dual Edge | 2 | 44 | Black | Card Guides | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Side Mount Opening Unthreaded | Solder Wire Wrap | 0.25 Ám | 10 Áin | Cantilever | Female | 88 | Copper Alloy | -40 C | 105 ░C | Dual | Right Angle Through Hole | Non Specified - Dual Edge | 2 | 44 | Black | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Side Mount Opening Unthreaded | Solder | 0.25 Ám | 10 Áin | Cantilever | Female | 88 | Copper Alloy | -40 C | 105 ░C | Dual | Through Hole | Non Specified - Dual Edge | 2 | 44 | Black | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Flush Mount Side Opening Unthreaded | Solder Wire Wrap | 0.25 Ám | 10 Áin | Cantilever | Female | 88 | Copper Alloy | -40 C | 105 ░C | Dual | Right Angle Through Hole | Non Specified - Dual Edge | 2 | 44 | Black | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Floating Bobbin Top Mount Opening | Wire Wrap | 0.25 Ám | 10 Áin | Cantilever | Female | 88 | Copper Alloy | -40 C | 105 ░C | Dual | Through Hole | Non Specified - Dual Edge | 2 | 44 | Black | 0.116 " | 2.95 mm | |
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | 0.25 Ám | 10 Áin | Cantilever | Female | 88 | Copper Alloy | -40 C | 105 ░C | Dual | Through Hole | Non Specified - Dual Edge | 2 | 44 | Black | Card Guides | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Flush Mount Side Opening Unthreaded | Solder | 0.25 Ám | 10 Áin | Cantilever | Female | 88 | Copper Alloy | -40 C | 105 ░C | Dual | Through Hole | Non Specified - Dual Edge | 2 | 44 | Black | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | M3 Threaded Insert Top Mount Opening | Solder Wire Wrap | 0.25 Ám | 10 Áin | Cantilever | Female | 88 | Copper Alloy | -40 C | 105 ░C | Dual | Right Angle Through Hole | Non Specified - Dual Edge | 2 | 44 | Black | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | 0.25 Ám | 10 Áin | Cantilever | Female | 88 | Copper Alloy | -40 C | 105 ░C | Dual | Through Hole | Non Specified - Dual Edge | 2 | 44 | Black | Card Guides |
