VUO35 Series

Catalog

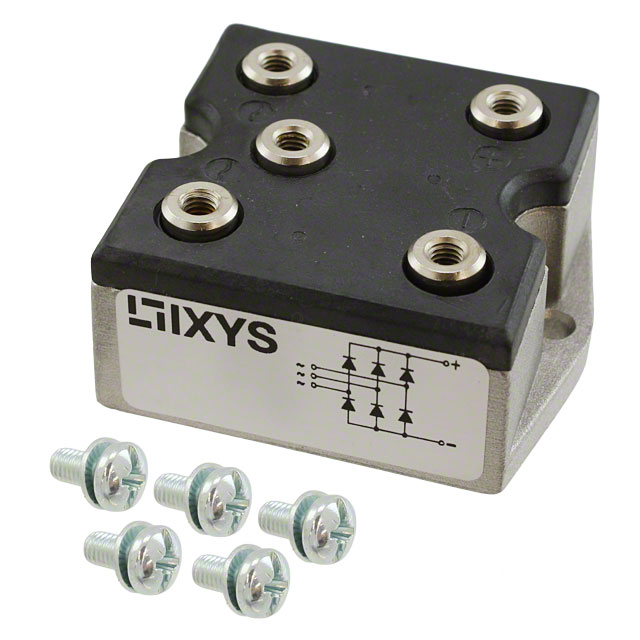

BRIDGE RECT 3P 1.4KV 38A PWS-A

Part	Package / Case	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Technology	Voltage - Peak Reverse (Max)	Supplier Device Package	Diode Type	Mounting Type
LITTELFUSE VUO35-14NO7	PWS-A	1.1 V	-40 °C	150 °C	40 µA	38 A	Standard	1.4 kV	PWS-A	Three Phase	Chassis Mount
LITTELFUSE VUO35-18NO7	PWS-A	1.1 V	-40 °C	150 °C	40 µA	38 A	Standard	1.8 kV	PWS-A	Three Phase	Chassis Mount
LITTELFUSE VUO35-12NO7	PWS-A	1.1 V	-40 °C	150 °C	40 µA	38 A	Standard	1.2 kV	PWS-A	Three Phase	Chassis Mount
LITTELFUSE VUO35-16NO7	PWS-A	1.1 V	-40 °C	150 °C	40 µA	38 A	Standard	1.6 kV	PWS-A	Three Phase	Chassis Mount
