HMS12 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

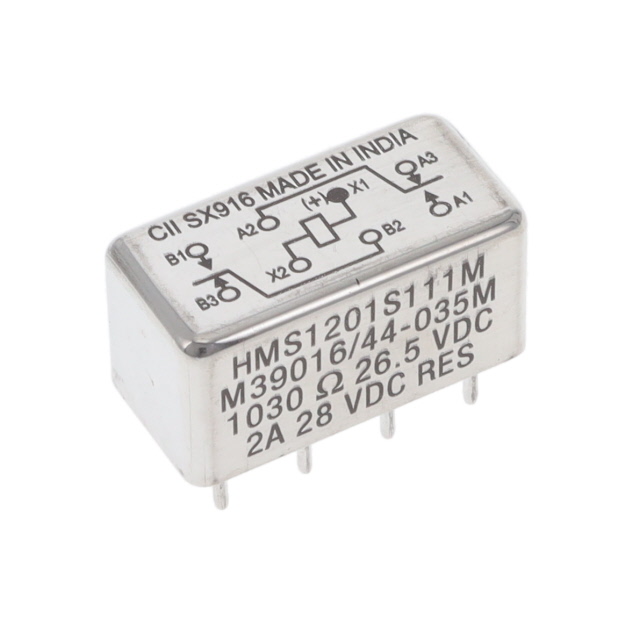

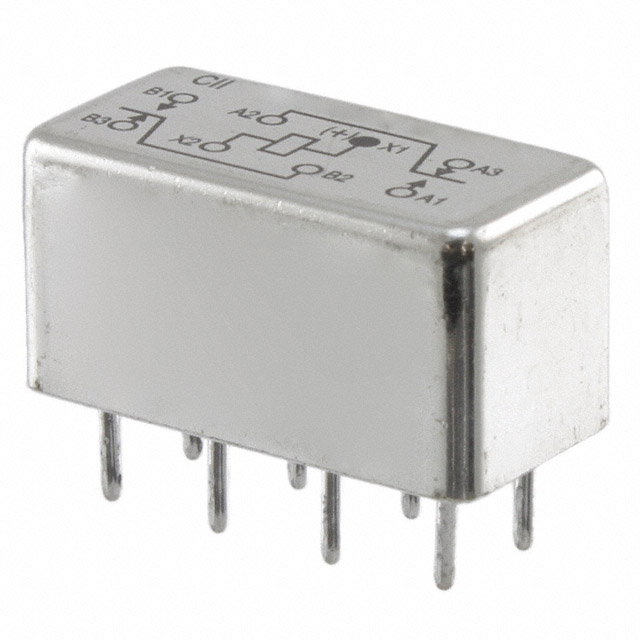

RELAY GEN PURPOSE DPDT 2A 26.5V
| Part | Coil Resistance | Contact Material | Relay Type | Load - Max Switching | Seal Rating | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Coil Voltage | Contact Form | Must Operate Voltage | Release Time | Termination Style | Must Release Voltage | Switching Voltage [Max] | Coil Current | Coil Type | Contact Rating (Current) | Operate Time | Grade | Qualification | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1030 Ohms | Gold (Au) Silver (Ag) | General Purpose | 56 W 300 VA | Sealed - Hermetically | Through Hole | -65 ░C | 125 °C | 26.5 VDC | DPDT (2 Form C) | 11.4 VDC | 5 ms | PC Pin | 1.1 VDC | 28 VDC 115 VAC | 25.7 mA | Non Latching | 2 A | 6 ms | |||
TE Connectivity AMP Connectors | 47 Ohms | Gold (Au) Silver (Ag) | General Purpose | 56 W 300 VA | Sealed - Hermetically | Through Hole | -65 ░C | 125 °C | DPDT (2 Form C) | 5 ms | PC Pin | 0.21 VDC | 28 VDC 115 VAC | Non Latching | 2 A | 6 ms | ||||||
TE Connectivity AMP Connectors | 310 Ohms | Gold (Au) Silver (Ag) | General Purpose | 56 W 300 VA | Sealed - Hermetically | Through Hole | -65 ░C | 125 °C | 12 VDC | DPDT (2 Form C) | 5.6 VDC | 5 ms | PC Pin | 0.55 VDC | 28 VDC 115 VAC | 38.7 mA | Non Latching | 2 A | 6 ms | |||
 TE Connectivity AMP Connectors | 47 Ohms | Gold (Au) Silver (Ag) | General Purpose | 56 W 300 VA | Sealed - Hermetically | Chassis Mount | -65 ░C | 125 °C | 5 VDC | DPDT (2 Form C) | 5 ms | PC Pin | 0.21 VDC | 28 VDC 115 VAC | 106.4 mA | Non Latching | 2 A | 6 ms | ||||
 TE Connectivity AMP Connectors | 310 Ohms | Gold (Au) Silver (Ag) | General Purpose | Sealed - Hermetically | Through Hole | -65 ░C | 125 °C | 12 VDC | DPDT (2 Form C) | 5.6 VDC | 5 ms | PC Pin | 0.55 VDC | 38.7 mA | Non Latching | 2 A | 6 ms | Military | MIL-R-39016/44 | 28 VDC | ||
TE Connectivity AMP Connectors | General Purpose | Sealed - Hermetically | Through Hole | -65 ░C | 125 °C | DPDT (2 Form C) | 5 ms | PC Pin | 2 A | 6 ms | Military | MIL-R-39016/44 | ||||||||||
 TE Connectivity AMP Connectors | 1030 Ohms | Gold (Au) Silver (Ag) | General Purpose | Sealed - Hermetically | Through Hole | -65 ░C | 125 °C | 26.5 VDC | DPDT (2 Form C) | 11.4 VDC | 5 ms | PC Pin | 1.1 VDC | 25.7 mA | Non Latching | 2 A | 6 ms | Military | MIL-R-39016/44 | 28 VDC | ||
TE Connectivity AMP Connectors | 47 Ohms | Gold (Au) Silver (Ag) | General Purpose | 56 W 300 VA | Sealed - Hermetically | Through Hole | -65 ░C | 125 °C | 5 VDC | DPDT (2 Form C) | 5 ms | PC Pin | 0.21 VDC | 28 VDC 115 VAC | 106.4 mA | Non Latching | 2 A | 6 ms | ||||
TE Connectivity AMP Connectors | 518 Ohms | Gold (Au) Silver (Ag) | General Purpose | 56 W 300 VA | Sealed - Hermetically | Through Hole | -65 ░C | 125 °C | 12 VDC | DPDT (2 Form C) | 7.2 VDC | 3 ms | PC Pin | 0.7 VDC | 28 VDC 115 VAC | 23.2 mA | Non Latching | 2 A | 5 ms | |||
TE Connectivity AMP Connectors | 1.62 kOhms | Gold (Au) Silver (Ag) | General Purpose | 56 W 300 VA | Sealed - Hermetically | Through Hole | -65 ░C | 125 °C | 30 VDC | DPDT (2 Form C) | 14.3 VDC | 5 ms | PC Pin | 1.4 VDC | 28 VDC 115 VAC | 18.5 mA | Non Latching | 2 A | 6 ms |
