CYT4BB5 Series

Manufacturer: INFINEON

Catalog

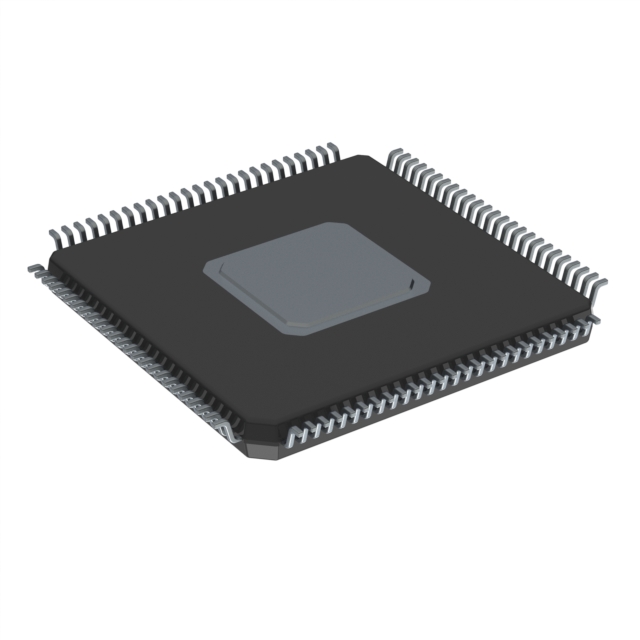

IC MCU 32BT 4.0625MB FLSH 100QFP

Part	EEPROM Size	Package / Case	Supplier Device Package	Program Memory Type	Core Size	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Core Processor	Mounting Type	Peripherals	Oscillator Type	Number of I/O	Program Memory Size	Data Converters	Connectivity	Speed	RAM Size	Core Size
INFINEON CYT4BB5CEBQ0AESGS	256 K	100-LQFP Exposed Pad	100-TEQFP (14x14)	FLASH	32-Bit Quad-Core	-40 °C	105 °C	5.5 V	2.7 V	ARM® Cortex®-M0+ ARM® Cortex®-M7	Surface Mount	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	External Internal	72	4.0625 MB	A/D 55x12b SAR	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	100 MHz 250 MHz	768 K
INFINEON CYT4BB5CEBQ1AESGST	256 K	100-LQFP Exposed Pad	100-TEQFP (14x14)	FLASH	Tri-Core	-40 °C	105 °C	5.5 V	2.7 V	ARM® Cortex®-M0+ ARM® Cortex®-M7F	Surface Mount	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	External Internal	72	4.0625 MB	A/D 37x12b SAR	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	100 MHz 250 MHz	768 K	32 Bit
INFINEON CYT4BB5CEBQ0AEEGST	256 K	100-LQFP Exposed Pad	100-TEQFP (14x14)	FLASH	32-Bit Quad-Core	-40 °C	125 °C	5.5 V	2.7 V	ARM® Cortex®-M0+ ARM® Cortex®-M7	Surface Mount	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	External Internal	72	4.0625 MB	A/D 55x12b SAR	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	100 MHz 250 MHz	768 K
INFINEON CYT4BB5CEBQ1AEEGST	256 K	100-LQFP Exposed Pad	100-TEQFP (14x14)	FLASH	Tri-Core	-40 °C	125 °C	5.5 V	2.7 V	ARM® Cortex®-M0+ ARM® Cortex®-M7F	Surface Mount	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	External Internal	72	4.0625 MB	A/D 37x12b SAR	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	100 MHz 250 MHz	768 K	32 Bit
INFINEON CYT4BB5CEBQ0AEEGS	256 K	100-LQFP Exposed Pad	100-TEQFP (14x14)	FLASH	32-Bit Quad-Core	-40 °C	125 °C	5.5 V	2.7 V	ARM® Cortex®-M0+ ARM® Cortex®-M7	Surface Mount	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	External Internal	72	4.0625 MB	A/D 55x12b SAR	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	100 MHz 250 MHz	768 K
INFINEON CYT4BB5CEBQ1AESGS	256 K	100-LQFP Exposed Pad	100-TEQFP (14x14)	FLASH	Tri-Core	-40 °C	105 °C	5.5 V	2.7 V	ARM® Cortex®-M0+ ARM® Cortex®-M7F	Surface Mount	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	External Internal	72	4.0625 MB	A/D 37x12b SAR	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	100 MHz 250 MHz	768 K	32 Bit
INFINEON CYT4BB5CEBQ0AESGST	256 K	100-LQFP Exposed Pad	100-TEQFP (14x14)	FLASH	32-Bit Quad-Core	-40 °C	105 °C	5.5 V	2.7 V	ARM® Cortex®-M0+ ARM® Cortex®-M7	Surface Mount	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	External Internal	72	4.0625 MB	A/D 55x12b SAR	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	100 MHz 250 MHz	768 K
