UTP01 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSNG MALE 8POS PNL MNT

Part	Ingress Protection IP Rating	Ingress Protection Description	Contact Type	Shielding	Note	Fastening Type	Connector Type	Material Flammability Rating	Contact Shape	Orientation	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Feature	Number of Positions	Shell Material	Type	Housing Color	Shell Size - Insert Length	Shell Size - Insert Width	Contact Size	Position Types	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)

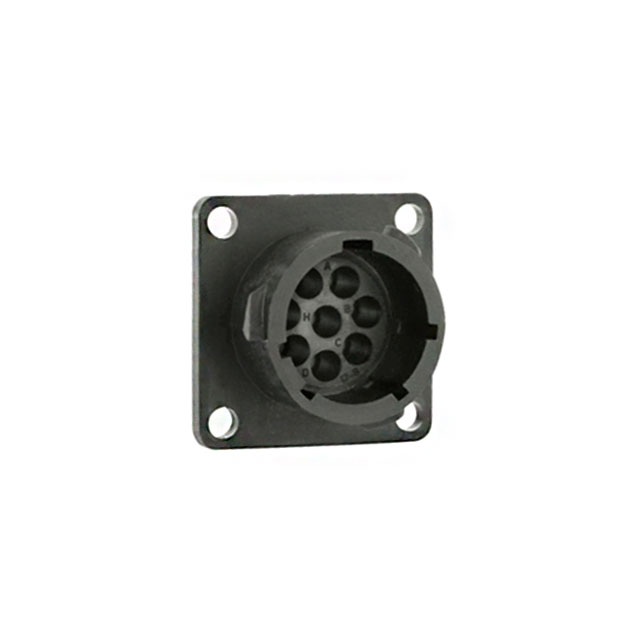

Amphenol Aerospace Operations UTP0128PH	IP65	Dust Tight Water Resistant	Crimp	Unshielded	Contacts Not Included	Bayonet Lock	Receptacle Housing	UL94 V-0	Circular	N (Normal)	Panel Mount	125 °C	-25 °C	Flange	8	Glass Filled Polyester	For Male Pins	Black	12 mm	8 mm	16 S
Amphenol Aerospace Operations UTP0187PH	IP65	Dust Tight Water Resistant	Crimp	Unshielded	Contacts Not Included	Bayonet Lock	Receptacle Housing	UL94 V-0	Circular	N (Normal)	Panel Mount	125 °C	-25 °C	Flange	7	Glass Filled Polyester	For Male Pins	Black	18 mm	7 mm	16 S	PE
Amphenol Aerospace Operations UTP01619S			Crimp	Unshielded	Contacts Not Included	Bayonet Lock	Receptacle Housing	UL94 V-0	Circular	N (Normal)	Panel Mount	125 °C	-25 °C	Flange	19	Glass Filled Polyester	For Female Sockets	Black			16 S		19	16 S

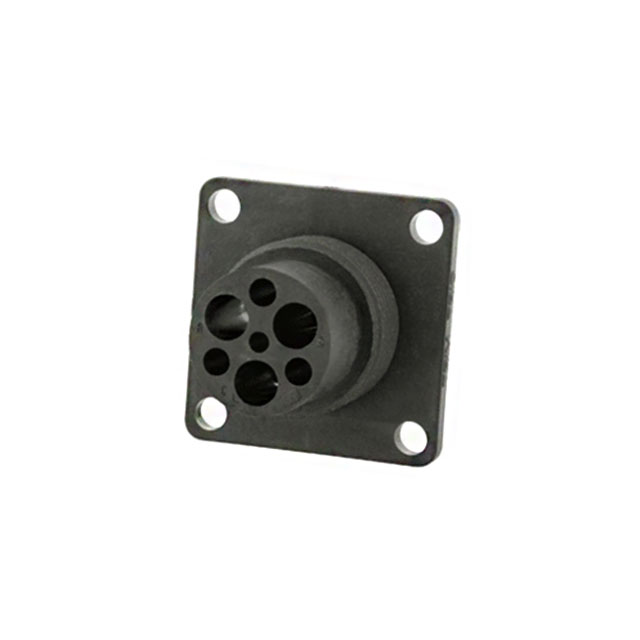

Amphenol Aerospace Operations UTP0122G1PH	IP65	Dust Tight Water Resistant	Crimp	Unshielded	Contacts Not Included	Bayonet Lock	Receptacle Housing	UL94 V-0	Circular	N (Normal)	Panel Mount	125 °C	-55 °C	Flange	3	Glass Filled Polyester	For Male Pins	Black	12 mm	2 mm	12	PE

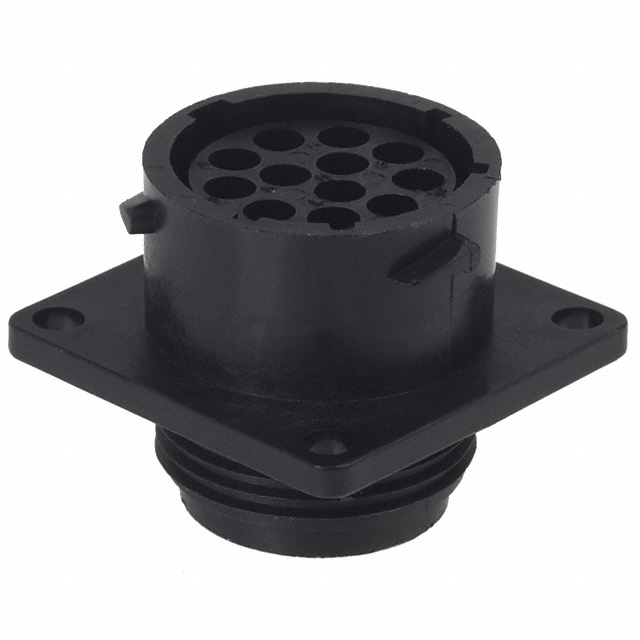

Amphenol Aerospace Operations UTP01412S			Crimp	Unshielded	Contacts Not Included	Bayonet Lock	Receptacle Housing	UL94 V-0	Circular	N (Normal)	Panel Mount	125 °C	-25 °C	Flange	12	Glass Filled Polyester	For Female Sockets	Black	14 mm	12 mm	16 S

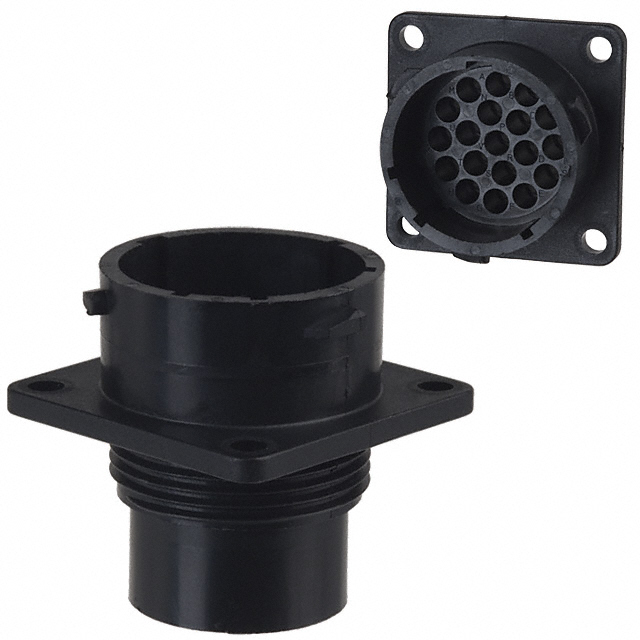

Amphenol Aerospace Operations UTP01619P			Crimp	Unshielded	Contacts Not Included	Bayonet Lock	Receptacle Housing	UL94 V-0	Circular	N (Normal)	Panel Mount	125 °C	-25 °C	Flange	19	Glass Filled Polyester	For Male Pins	Black			16 S		19	16 S

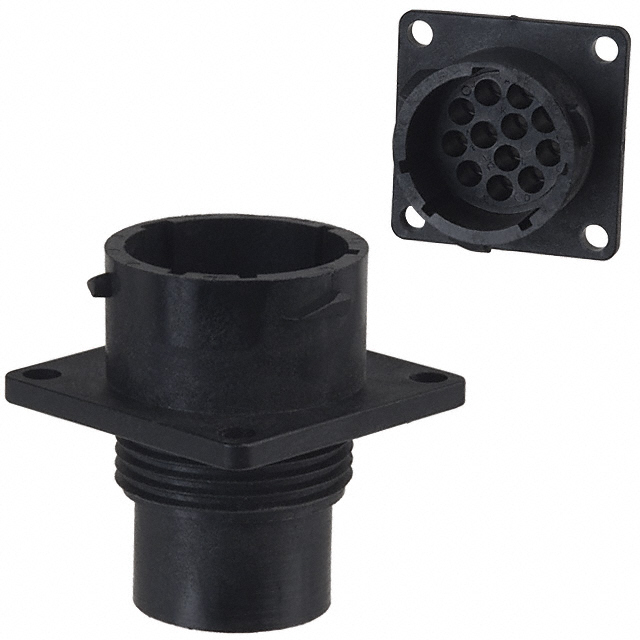

Amphenol Aerospace Operations UTP01412P			Crimp	Unshielded	Contacts Not Included	Bayonet Lock	Receptacle Housing	UL94 V-0	Circular	N (Normal)	Panel Mount	125 °C	-25 °C	Flange	12	Glass Filled Polyester	For Male Pins	Black	14 mm	12 mm	16 S
Amphenol Aerospace Operations UTP01412SH	IP65	Dust Tight Water Resistant	Crimp	Unshielded	Contacts Not Included	Bayonet Lock	Receptacle Housing	UL94 V-0	Circular	N (Normal)	Panel Mount	125 °C	-25 °C	Flange	12	Glass Filled Polyester	For Female Sockets	Black	14 mm	12 mm	16 S

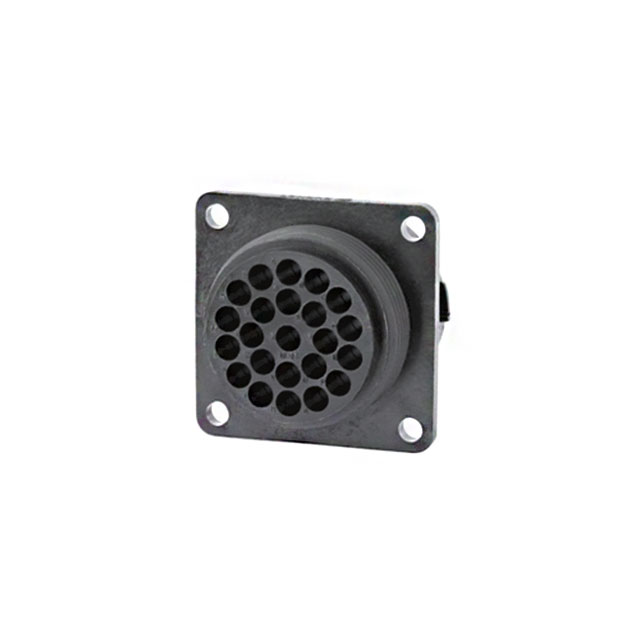

Amphenol Aerospace Operations UTP01823SH	IP65	Dust Tight Water Resistant	Crimp	Unshielded	Contacts Not Included	Bayonet Lock	Receptacle Housing	UL94 V-0	Circular	N (Normal)	Panel Mount	125 °C	-25 °C	Flange	23	Glass Filled Polyester	For Female Sockets	Black			16 S		23	18
Amphenol Aerospace Operations UTP0187P			Crimp	Unshielded	Contacts Not Included	Bayonet Lock	Receptacle Housing	UL94 V-0	Circular	N (Normal)	Panel Mount	125 °C	-25 °C	Flange	7	Glass Filled Polyester	For Male Pins	Black	18 mm	7 mm	16 S	PE
