SA28600 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

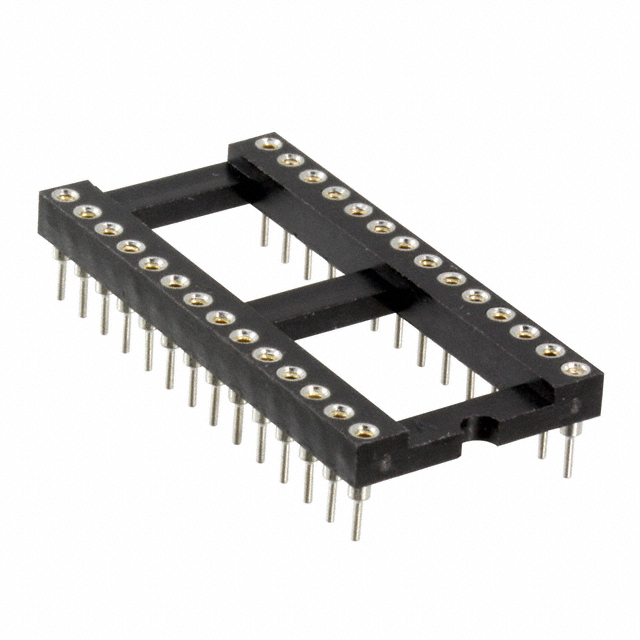

CONN IC DIP SOCKET 28POS GOLD
| Part | Current Rating (Amps) | Contact Resistance | Material Flammability Rating | Contact Material - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish - Mating | Contact Material - Post [custom] | Features | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Type [custom] | Type [custom] | Type | Mounting Type | Contact Finish - Post | Pitch - Post | Pitch - Post | Termination | Number of Positions or Pins (Grid) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 3 A | 4 mOhm | UL94 V-0 | Beryllium Copper | 200 µin | 5.08 µm | Flash | Gold | Brass | Open Frame | Glass Filled Polyester Thermoplastic | -40 C | 105 ░C | 0.1 " | 2.54 mm | 15.24 mm | 0.6 in | DIP | Through Hole | Tin | 0.1 in | 2.54 mm | Solder | 28 |
