D200 Series
Manufacturer: Sensata-Crydom
Beta
⌘K

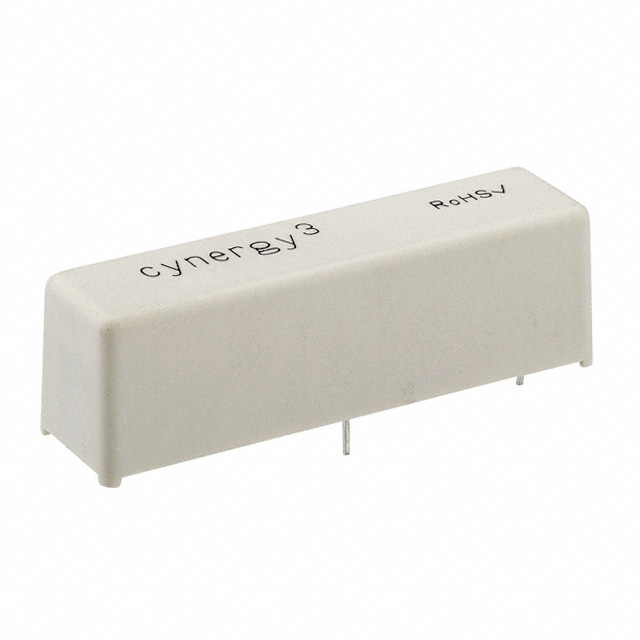

REED RELAY, SPST-NO, 12 VDC, D200 SERIES, THROUGH HOLE, 150 OHM, 3 A
| Part | Contact Rating (Current) | Operate Time | Must Release Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Release Time | Contact Form | Contact Material | Mounting Type | Switching Voltage [Max] | Coil Type | Coil Voltage | Must Operate Voltage | Termination Style | Coil Current | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | 3 A | 6 ms | 1.25 VDC | -20 ░C | 70 °C | 1 ms | SPST-NO (1 Form A) | Tungsten (W) | Through Hole | 2500 VDC 2500 VAC | Non Latching | 12 VDC | 9 VDC | PC Pin | 80 mA | |
 Sensata-Crydom | 3 A | 6 ms | 0.5 VDC | -20 ░C | 70 °C | 1 ms | SPST-NO (1 Form A) | Tungsten (W) | Through Hole | 2500 VDC 2500 VAC | Non Latching | 5 VDC | 3.75 VDC | PC Pin | 179 mA | 28 Ohms |
Sensata-Crydom | 3 A | 6 ms | 4 VDC | -20 ░C | 70 °C | 1 ms | SPST-NO (1 Form A) | Tungsten (W) | Through Hole | 2500 VDC 2500 VAC | Non Latching | 24 VDC | 20 VDC | PC Pin | 31 mA |
