N42182 Series
Manufacturer: Seoul Semiconductor Inc.
Beta
⌘K

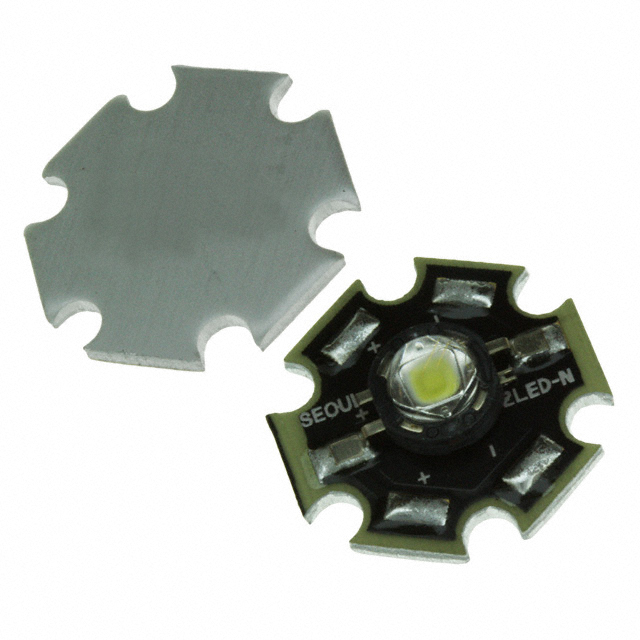

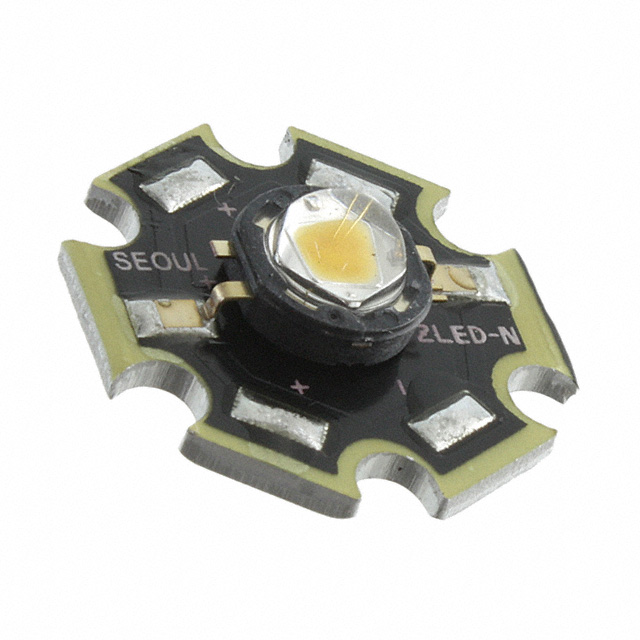

LED MOD Z POWER WH STARBRD
| Part | Type | Lumens/Watt @ Current - Test | Luminous Flux @ Current/Temperature | Current - Test | Configuration | Temperature - Test | Voltage - Forward (Vf) (Typ) | Height [z] | Color | Current - Max [Max] | Size / Dimension [x] | Size / Dimension [y] | Viewing Angle | Lens Type | CRI (Color Rendering Index) | CCT (K) | Light Emitting Surface (LES) [diameter] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Seoul Semiconductor Inc. | LED Module | 47 lm/W | 53 lm | 350 mA | Starboard | 25 °C | 3.25 V | 6.78 mm | Warm White | 800 mA | 19.9 mm | 19.9 mm | 124 ° | Domed | 93 | 2700 K | ||
 Seoul Semiconductor Inc. | LED Module | 58 lm/W | 66 lm | 350 mA | Starboard | 25 °C | 3.25 V | 6.78 mm | Warm White | 800 mA | 124 ° | Domed | 93 | 3000 K | 5.6 mm | 19.9 mm |
