RP3SLA Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

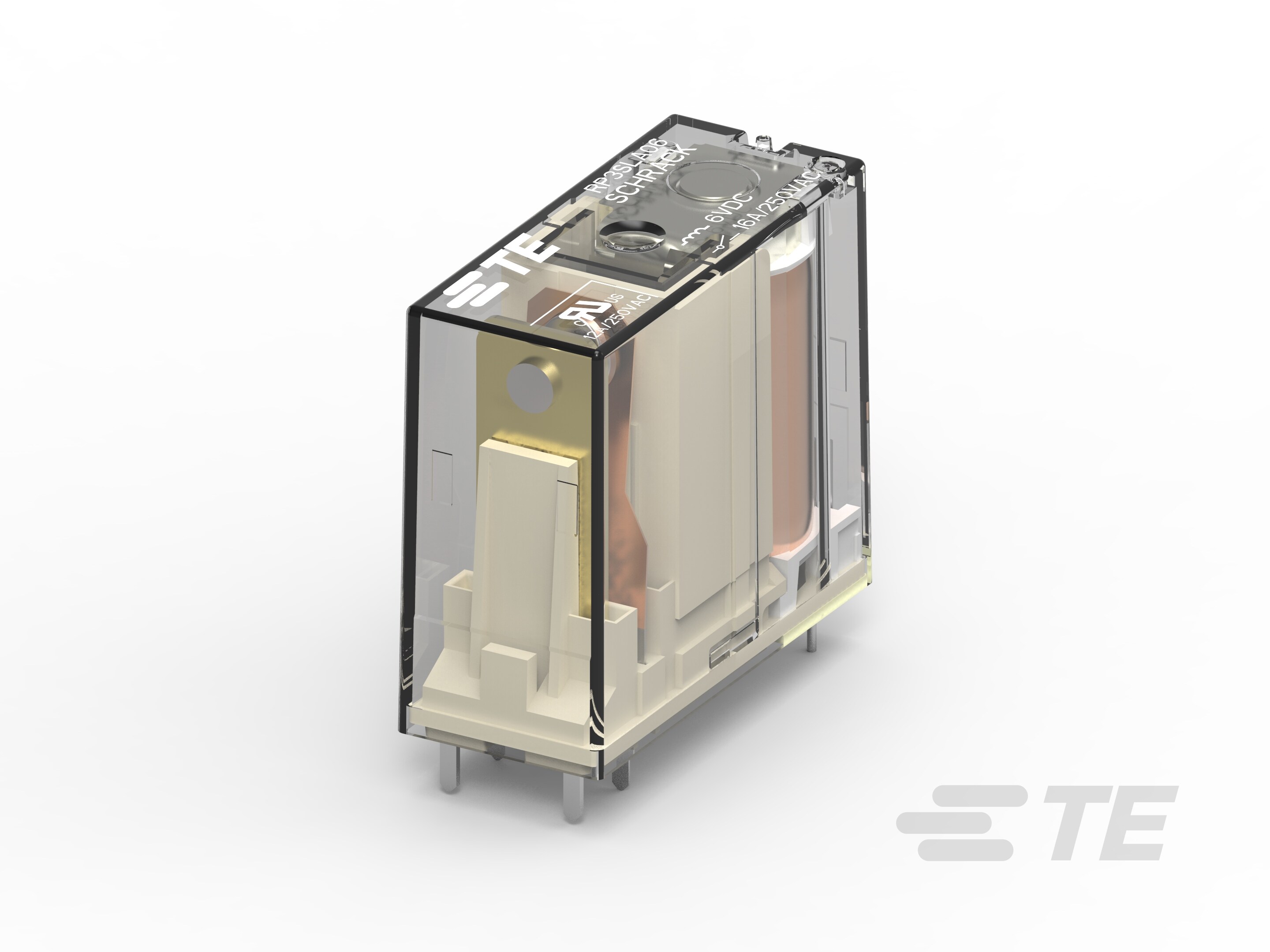

GENERAL PURPOSE RELAYS RP3SLA06
| Part | Coil Resistance | Mounting Type | Must Operate Voltage | Load - Max Switching | Switching Voltage [Max] | Contact Rating (Current) | Coil Type | Contact Material | Operate Time | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Approval Agency | Must Release Voltage | Contact Form | Coil Current | Release Time | Seal Rating | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 31 Ohms | Through Hole | 4.5 VDC | 6400 VA | 400 VAC | 16 A | Non Latching | Silver Tin Oxide (AgSnO) | 14 ms | General Purpose | 70 °C | -40 C | PC Pin | cURus VDE | 0.6 VDC | SPST-NO (1 Form A) | 193.5 mA | 12 ms | ||
 TE Connectivity AMP Connectors | 460 Ohms | Through Hole | 18 VDC | 6400 VA | 400 VAC | 16 A | Latching Single Coil | Silver Tin Oxide (AgSnO) | 30 ms | General Purpose | 70 °C | -40 C | PC Pin | cURus VDE | SPST-NO (1 Form A) | 52 mA | 25 ms | Sealed - Flux Protection | 24 VDC |
