895-118 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 118POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Number of Positions/Bay/Row [custom]	Color	Mounting Type	Pitch	Pitch	Read Out	Contact Finish Thickness	Contact Finish Thickness	Gender	Contact Finish	Number of Rows [custom]	Termination	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Contact Type	Contact Material	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 895-118-544-808	2	Polyphenylene Sulfide (PPS)	59	Black	Through Hole	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Female	Gold	2	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	118	Cantilever	Copper Alloy	4-40 Threaded Insert Top Mount Opening	125 °C	-40 C	Non Specified - Dual Edge
EDAC Inc. 895-118-560-802	2	Polyphenylene Sulfide (PPS)	59	Black	Board Edge Straddle Mount	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Female	Gold	2	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	118	Cantilever	Copper Alloy		125 °C	-40 C	Non Specified - Dual Edge	3.25 mm	0.128 "	Card Extender

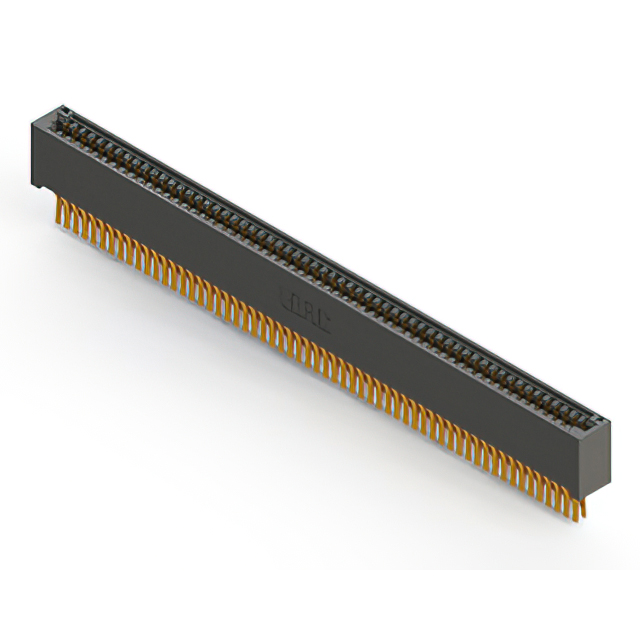

EDAC Inc. 895-118-560-201	2	Polyphenylene Sulfide (PPS)	59	Black	Board Edge Straddle Mount	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Female	Gold	2	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	118	Cantilever	Copper Alloy		125 °C	-40 C	Non Specified - Dual Edge			Card Extender
EDAC Inc. 895-118-544-204	2	Polyphenylene Sulfide (PPS)	59	Black	Through Hole	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Female	Gold	2	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	118	Cantilever	Copper Alloy	Flush Mount Top Opening Unthreaded	125 °C	-40 C	Non Specified - Dual Edge	3.96 mm	0.156 "
EDAC Inc. 895-118-560-503	2	Polyphenylene Sulfide (PPS)	59	Black	Board Edge Straddle Mount	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Female	Gold	2	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	118	Cantilever	Copper Alloy	Floating Bobbin Top Mount Opening	125 °C	-40 C	Non Specified - Dual Edge	2.95 mm	0.116 "	Card Extender
EDAC Inc. 895-118-520-802	2	Polyphenylene Sulfide (PPS)	59	Black	Through Hole	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Female	Gold	2	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	118	Cantilever	Copper Alloy		125 °C	-40 C	Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 895-118-520-502	2	Polyphenylene Sulfide (PPS)	59	Black	Through Hole	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Female	Gold	2	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	118	Cantilever	Copper Alloy		125 °C	-40 C	Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 895-118-555-503	2	Polyphenylene Sulfide (PPS)	59	Black	Board Edge Straddle Mount	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Female	Gold	2	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	118	Cantilever	Copper Alloy	Floating Bobbin Top Mount Opening	125 °C	-40 C	Non Specified - Dual Edge	2.95 mm	0.116 "	Card Extender
EDAC Inc. 895-118-560-208	2	Polyphenylene Sulfide (PPS)	59	Black	Board Edge Straddle Mount	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Female	Gold	2	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	118	Cantilever	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	125 °C	-40 C	Non Specified - Dual Edge			Card Extender
EDAC Inc. 895-118-560-807	2	Polyphenylene Sulfide (PPS)	59	Black	Board Edge Straddle Mount	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	Female	Gold	2	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	118	Cantilever	Copper Alloy	M3 Threaded Insert Top Mount Opening	125 °C	-40 C	Non Specified - Dual Edge			Card Extender
