AS5270 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K
SENSOR ANGLE 90DEG SURFACE MOUNT
| Part | Output Signal | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Output | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplier Device Package | Rotation Angle - Electrical, Mechanical | For Measuring | Actuator Type | Technology | Mounting Type | For Use With/Related Products | Module/Board Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

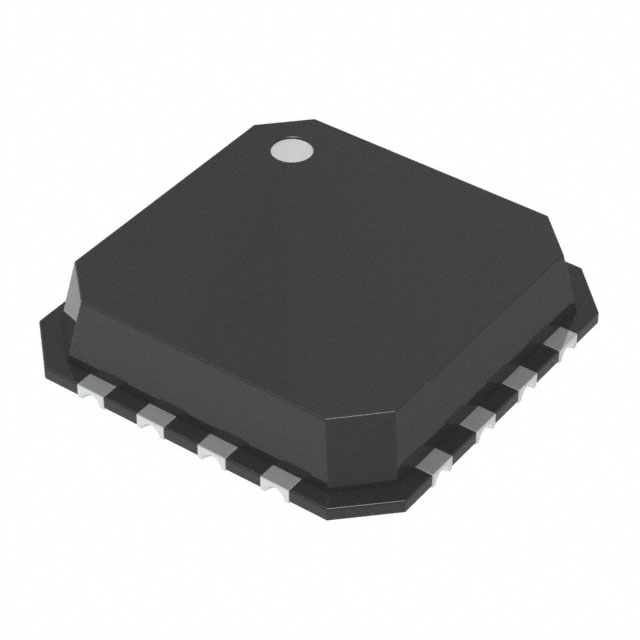

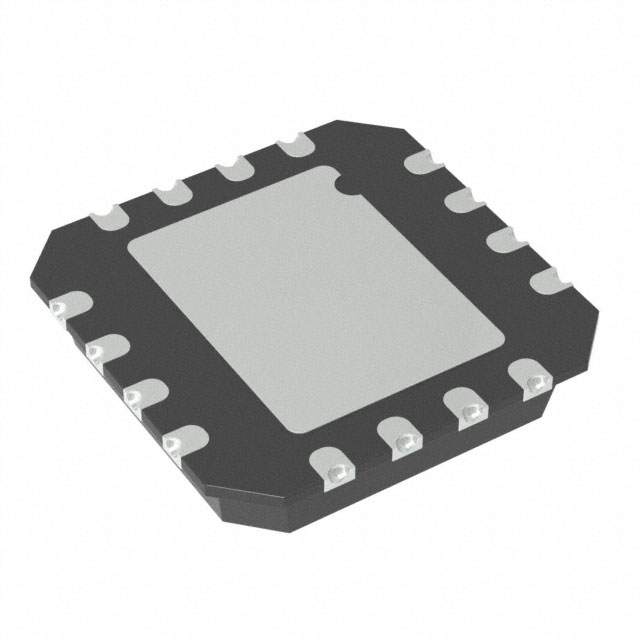

 ams-OSRAM USA INC. | Clockwise Increase | 16-VQFN Exposed Pad | -40 C | 150 °C | SMD (SMT) Tab | Analog Voltage | 5.5 V | 4.5 V | 16-MLF (6x6) | 90 ° | Angle | External Magnet Not Included | Hall Effect | Surface Mount | |||
ams-OSRAM USA INC. | AS5xxx-EK-USB-PB Board AS5270A AS5270B | ZIF Socket | AS5270A AS5270B AS5xxx-EK-USB-PB Board | ||||||||||||||
ams-OSRAM USA INC. | Clockwise Increase | 16-VQFN Exposed Pad | -40 C | 150 °C | SMD (SMT) Tab | Analog Voltage | 5.5 V | 4.5 V | 16-MLF (6x6) | Angle | External Magnet Not Included | Hall Effect | Surface Mount | ||||
 ams-OSRAM USA INC. | Clockwise Increase | 16-VQFN Exposed Pad | -40 C | 150 °C | SMD (SMT) Tab | PWM | 5.5 V | 4.5 V | 16-MLF (6x6) | Angle | External Magnet Not Included | Hall Effect | Surface Mount |
