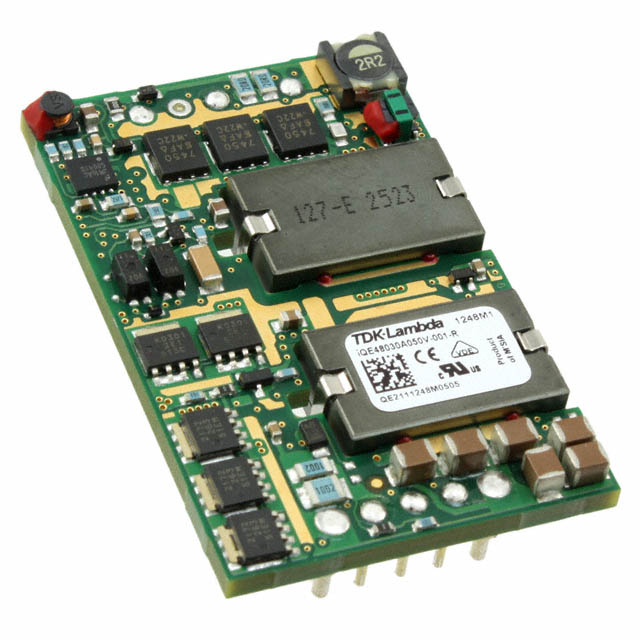

IQE48030 Series
Manufacturer: TDK Corporation
Beta
⌘K
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, DIP, 150 W, 1 OUTPUT, 5 V
| Part | Voltage - Output 1 | Control Features | Voltage - Input (Min) [Min] | Package / Case | Voltage - Input (Max) [Max] | Mounting Type | Number of Outputs | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Type | Features | Applications | Current - Output (Max) [Max] | Voltage - Isolation | Supplier Device Package | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 5 V | Active Low Enable | 36 V | 8-DIP Module | 75 V | Through Hole | 1 | 91 % | 125 °C | -40 C | 9.9 mm | 2.28 " | 1.45 in | 36.8 mm | 0.39 " | 57.9 mm | Intermediate Bus Converter | OCP OVP Remote On/Off | ITE (Commercial) | 30 A | 1.5 kV | ||
 TDK Corporation | 5 V | 36 V | Quarter Brick | 75 V | Through Hole | 1 | 90 % | 125 °C | -40 C | 10.4 mm | 2.28 " | 1.45 in | 36.8 mm | 0.41 in | 57.9 mm | Isolated Module | OCP OVP Remote On/Off SCP | ITE (Commercial) | 30 A | 1.5 kV | Quarter Brick | 150 W |
