DPX Series

Catalog

SIGNAL CONDITIONING LTCC DIPLEXER 0.8-2.2/2.4-2.5GHZ

Part	Low Band Attenuation (min / max dB) [Min]	Low Band Attenuation (min / max dB) [Max]	Frequency Bands (Low / High) [custom]	Frequency Bands (Low / High) [custom]	Package / Case	Package / Case	Type	Mounting Type	Return Loss (Low Band / High Band)	Frequency Bands (Low / High) [Min] [custom]	Frequency Bands (Low / High) [Min] [custom]	Frequency Bands (Low / High) [Max] [custom]	Frequency Bands (Low / High) [Max] [custom]	High Band Attenuation (min / max dB) [Min]	High Band Attenuation (min / max dB) [Max]	Return Loss (Low Band / High Band) [custom]	Return Loss (Low Band / High Band) [custom]	Frequency Bands (Low / High) [Max] [custom]	Frequency Bands (Low / High) [Min] [custom]	Frequency Bands (Low / High) [Min] [custom]	Frequency Bands (Low / High) [Max] [custom]

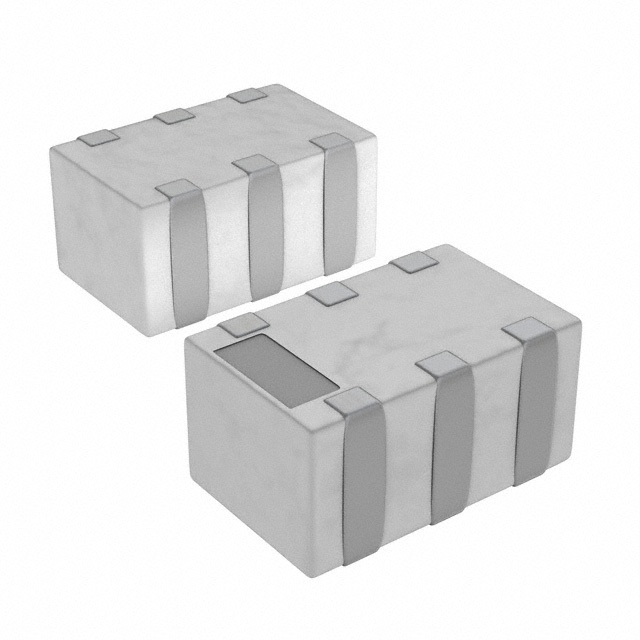

TDK Corporation DPX202500DT-9032A1	10 dB	22 dB	2.4 GHz 2.5 GHz	2.17 GHz 824 MHz	6 PC Pad	0805 (2012 Metric)	Diplexer	Surface Mount	9.54 dB 13.5 dB
TDK Corporation DPX205950DT-9026A1	10 dB	35 dB			6 PC Pad	0805 (2012 Metric)	Diplexer	Surface Mount		2.4 GHz	4.9 GHz	2.5 GHz	5.95 GHz	15 dB	27 dB	15.5 dB	17 dB

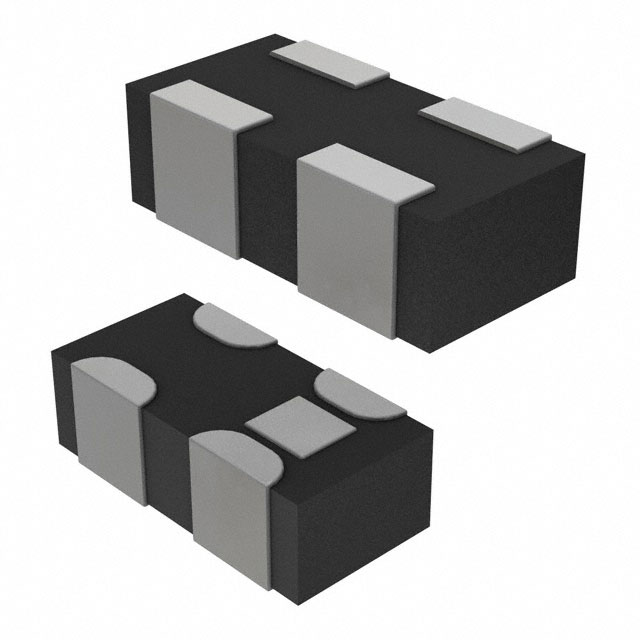

TDK Corporation DPX105950DT-6012A1	30 dB					0402 (1005 Metric) 4 PC Pad	Diplexer	Surface Mount						20 dB		10 dB	10 dB	5.95 GHz	4.9 GHz	2.3 GHz	2.5 GHz
