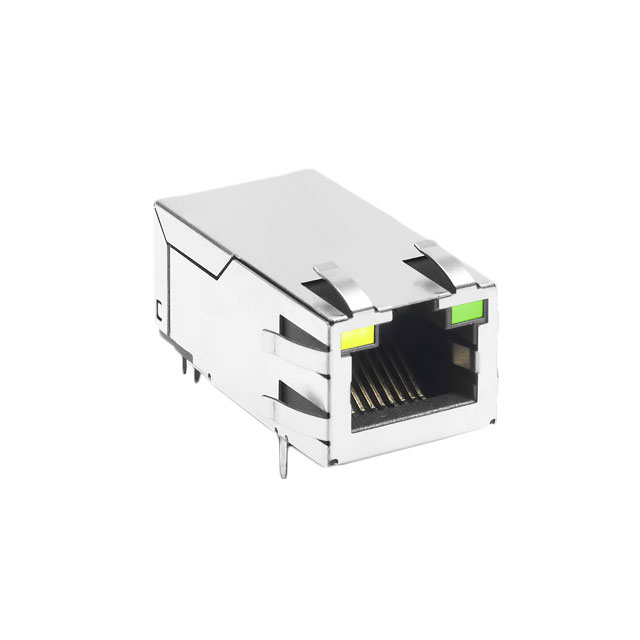

JXK0 Series
Manufacturer: Pulse Electronics
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS 1X1 TAB UP W/LED'S POE+
| Part | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Shield Material | Contact Material | Number of Rows | Orientation | Connector Type | Number of Ports | Contact Finish | Height Above Board [z] | Height Above Board [z] | Termination | Number of Cores per Jack | Shielding | Features | Tab Direction | Applications | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | LED Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 30 Áin | 0.76 Ám | Thermoplastic | Brass | Phosphor Bronze | 1 | 90 ° | RJ45 | 1 | Gold | 13.87 mm | 0.546 in | Solder | 8 | EMI Finger Shielded | Board Guide | Up | 10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+) | Through Hole | 85 °C | -40 C | Green Yellow - Green |
