PPPC162 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 32POS 0.1 GOLD PCB R/A

Part	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Contact Material	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Fastening Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Termination	Number of Rows [custom]	Number of Positions Loaded	Contact Finish - Post	Insulation Color	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish - Mating	Current Rating (Amps)	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height

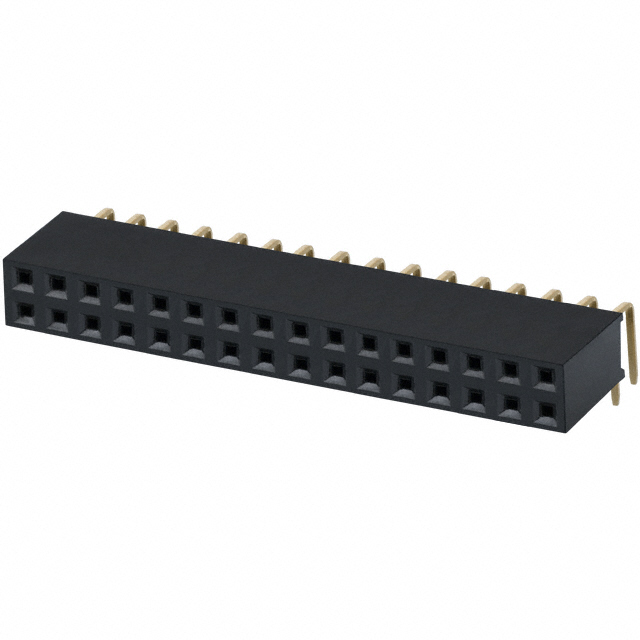

Sullins Connector Solutions PPPC162LJBN	Flash	Square	Polyester	Phosphor Bronze	Header	0.1 in	2.54 mm	250 V	Push-Pull	0.124 in	3.15 mm	UL94 V-0	0.2 in	5.08 mm	Flash	Solder	2	All	Gold	Black	0.1 "	2.54 mm	-40 C	105 ░C	Female Socket	Gold	3 A	Right Angle Through Hole

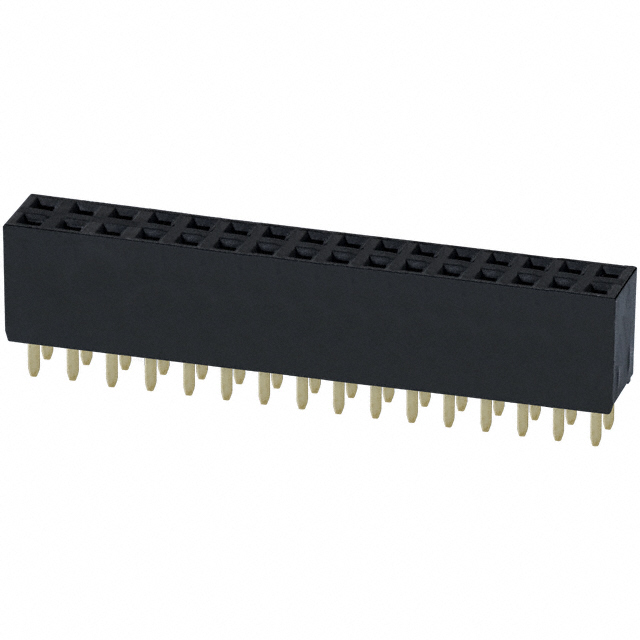

Sullins Connector Solutions PPPC162LFBN-RC	Flash	Square	Polyester	Phosphor Bronze	Header	0.1 in	2.54 mm	250 V	Push-Pull			UL94 V-0			Flash	Solder	2	All	Gold	Black	0.1 "	2.54 mm	-40 C	105 ░C	Female Socket	Gold	3 A	Through Hole	0.126 "	3.2 mm	0.335 "	8.51 mm

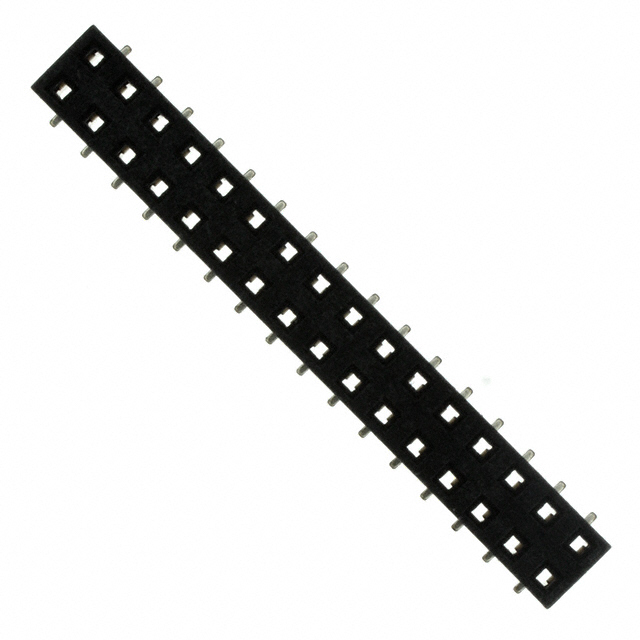

Sullins Connector Solutions PPPC162KFMS	Flash	Square	Polyester	Phosphor Bronze	Header	0.1 in	2.54 mm	250 V	Push-Pull			UL94 V-0	0.299 "		Flash	Solder	2	All	Gold	Black	0.1 "	2.54 mm	-40 C	125 °C	Female Socket	Gold	3 A	Surface Mount				7.6 mm
Sullins Connector Solutions PPPC162LFHN-M46RC	Flash	Square	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Header Elevated	0.1 in	2.54 mm	250 V	Push-Pull		2.3 mm	UL94 V-0	0.635 in	16.13 mm	Flash	Solder	2	All	Gold	Black	0.1 "	2.54 mm	-25 °C	105 ░C	Forked	Gold	3 A	Through Hole	0.091 "
